Home
>>
Audi
>>
1986
>>
Coupe GT L5-2226cc 2.22L SOHC (KX)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Diagram Information and Instructions
>>
Diagrams By Track Number
>>
Tracks 1 Thru 190
>>
Track 166 Thru 180
Track 166 Thru 180

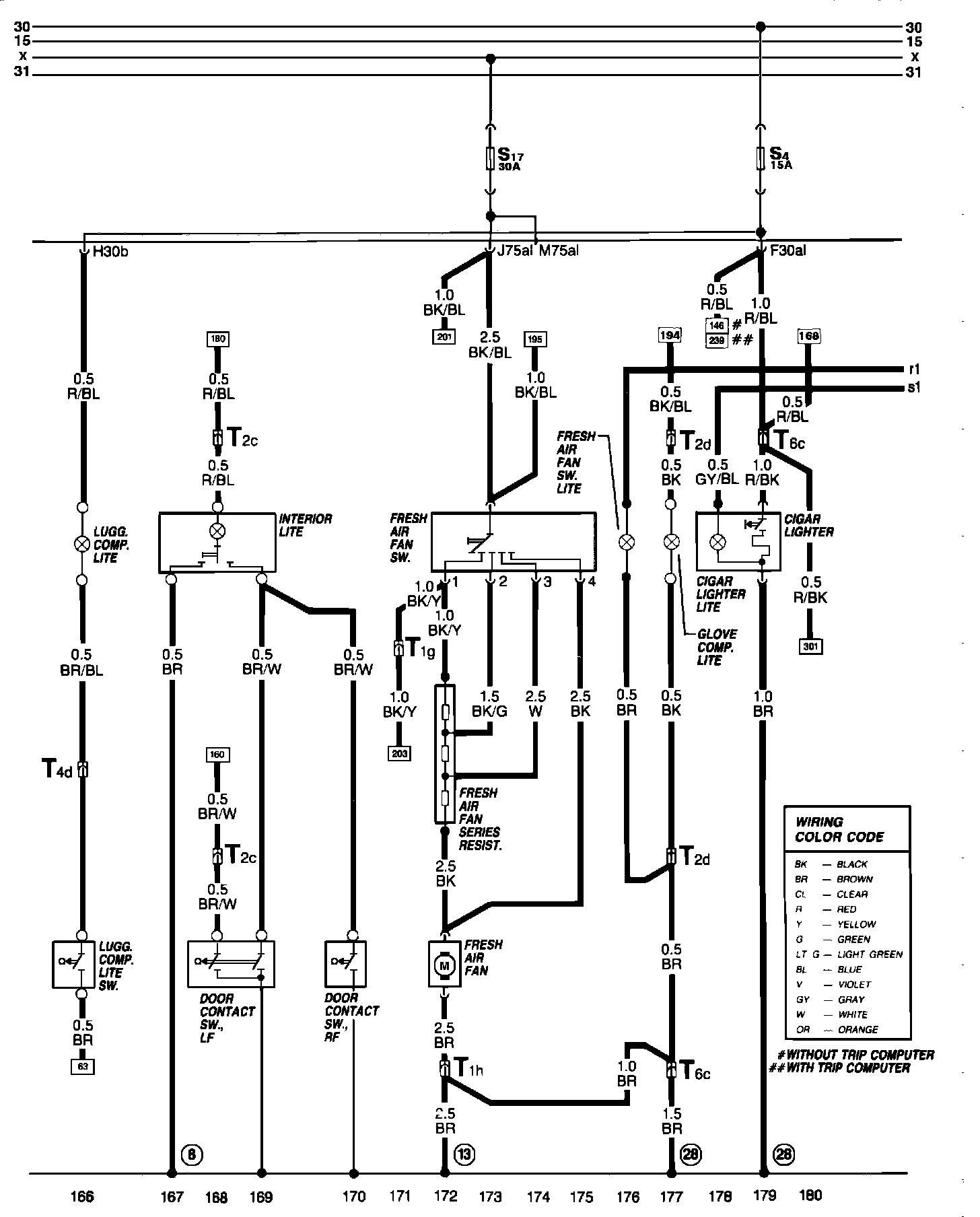

Interior Lights and Fresh Air Fan. Wiring Diagram:
