Home
>>
Audi
>>
1986
>>
5000CS Turbo L5-2226cc 2.22L SOHC Turbo (MC)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Diagrams
>>

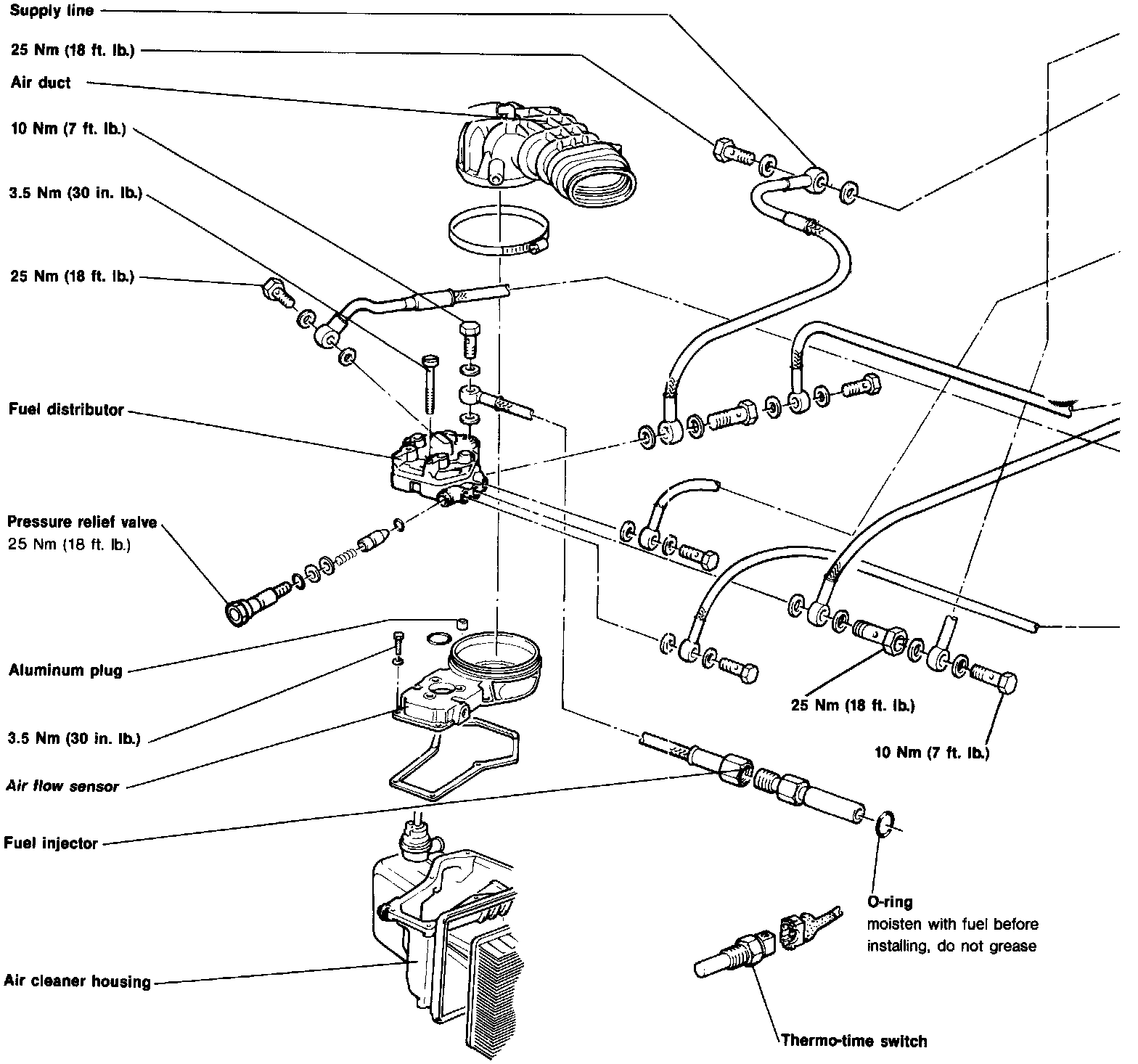

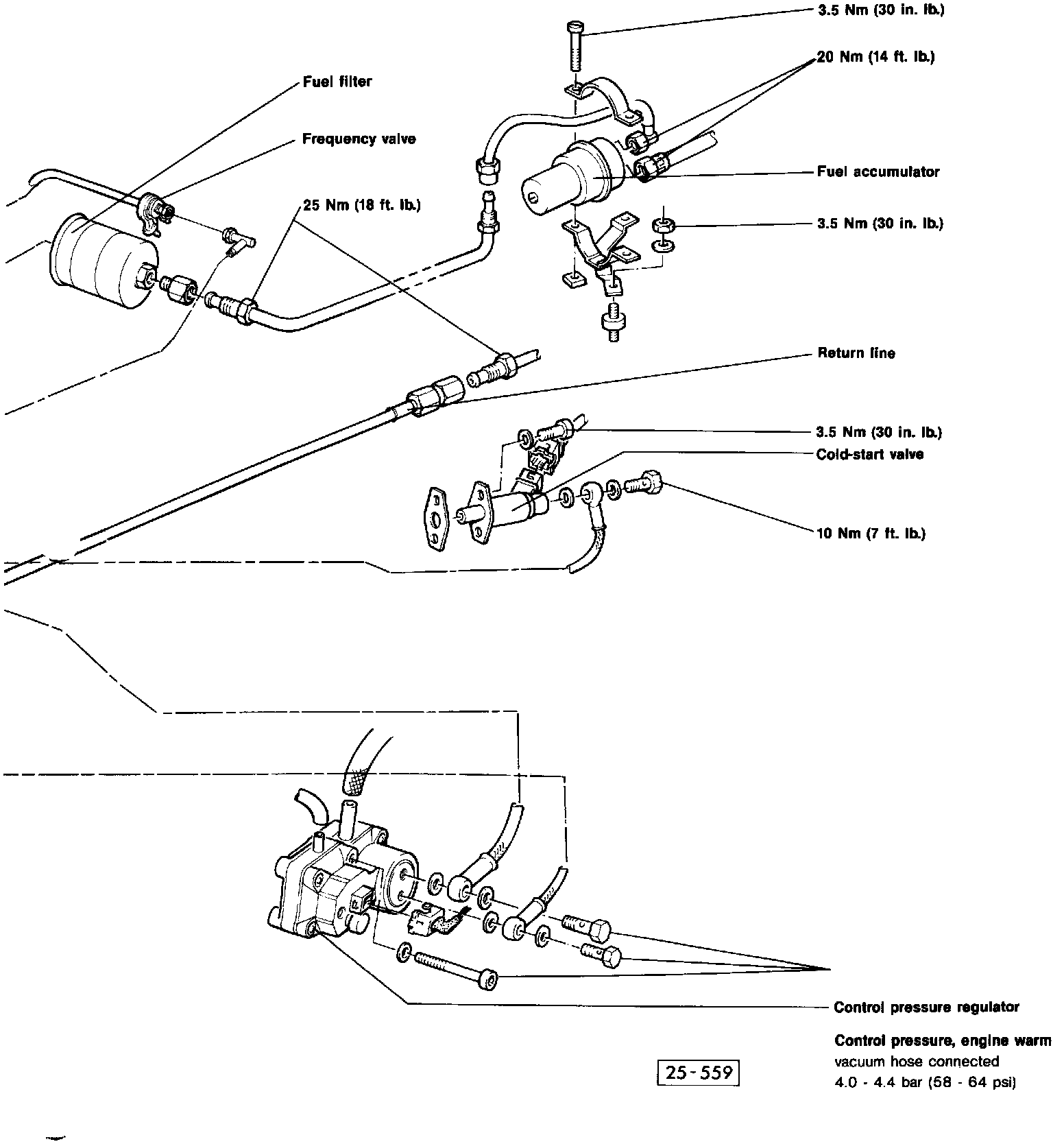

Exploded Views
>>
CIS Components
CIS Components
CAUTION:
Clean all fuel connections before removing, always replace gaskets
