Home >> Audi >> 1986 >> 5000CS Sedan L5-2226cc 2.22L SOHC (KZ) >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Relay >> Locations

Wiper Relay: Locations

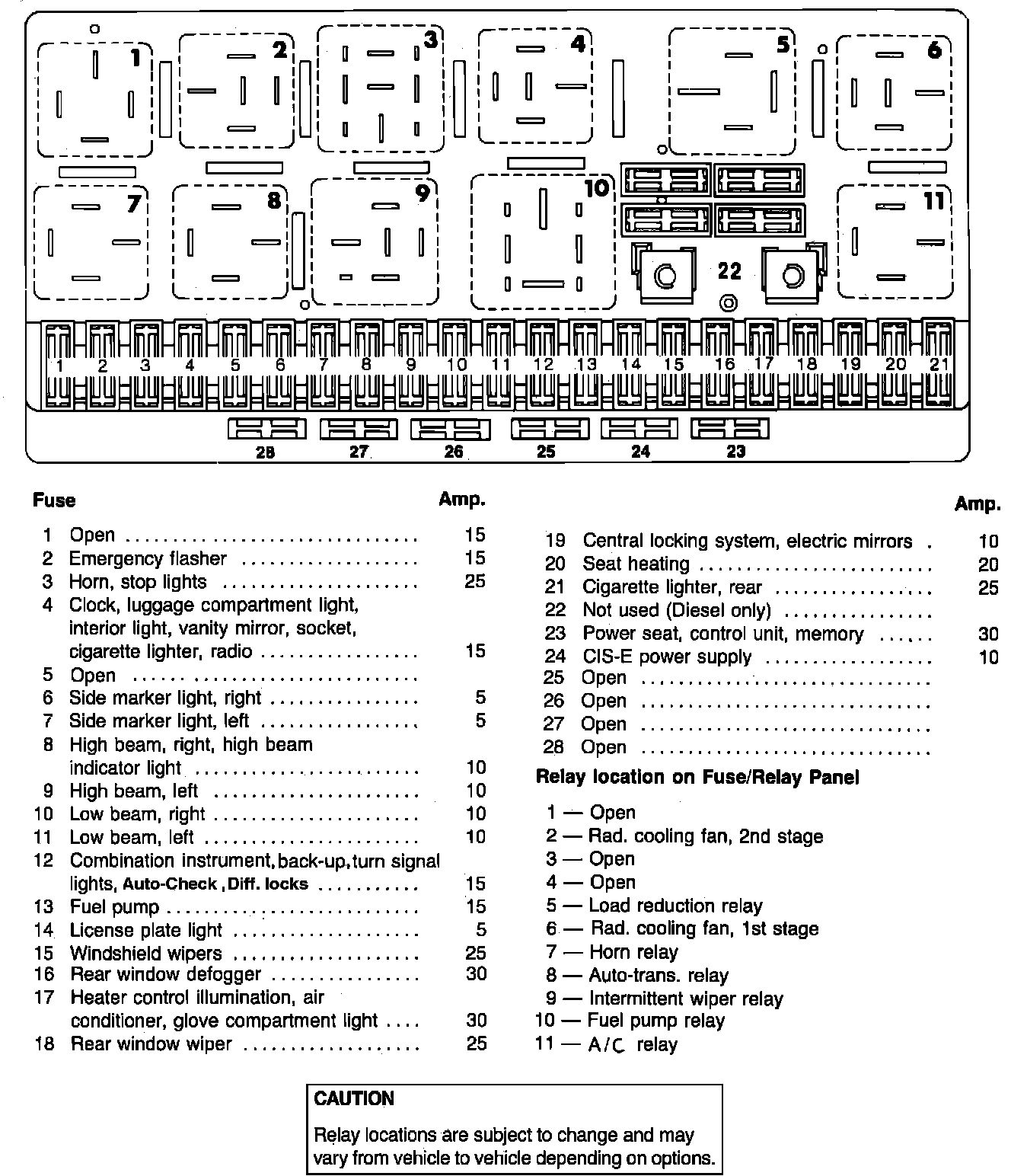

Fig. 47 Fuse/Relay Panel:



Main Fuse/Relay Panel:
