Home >> Audi >> 1986 >> 5000CD Turbo (Canada) L5-2226cc 2.22L SOHC Turbo (MC) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Panel Illumination Control Module >> Locations

Panel Illumination Control Module: Locations

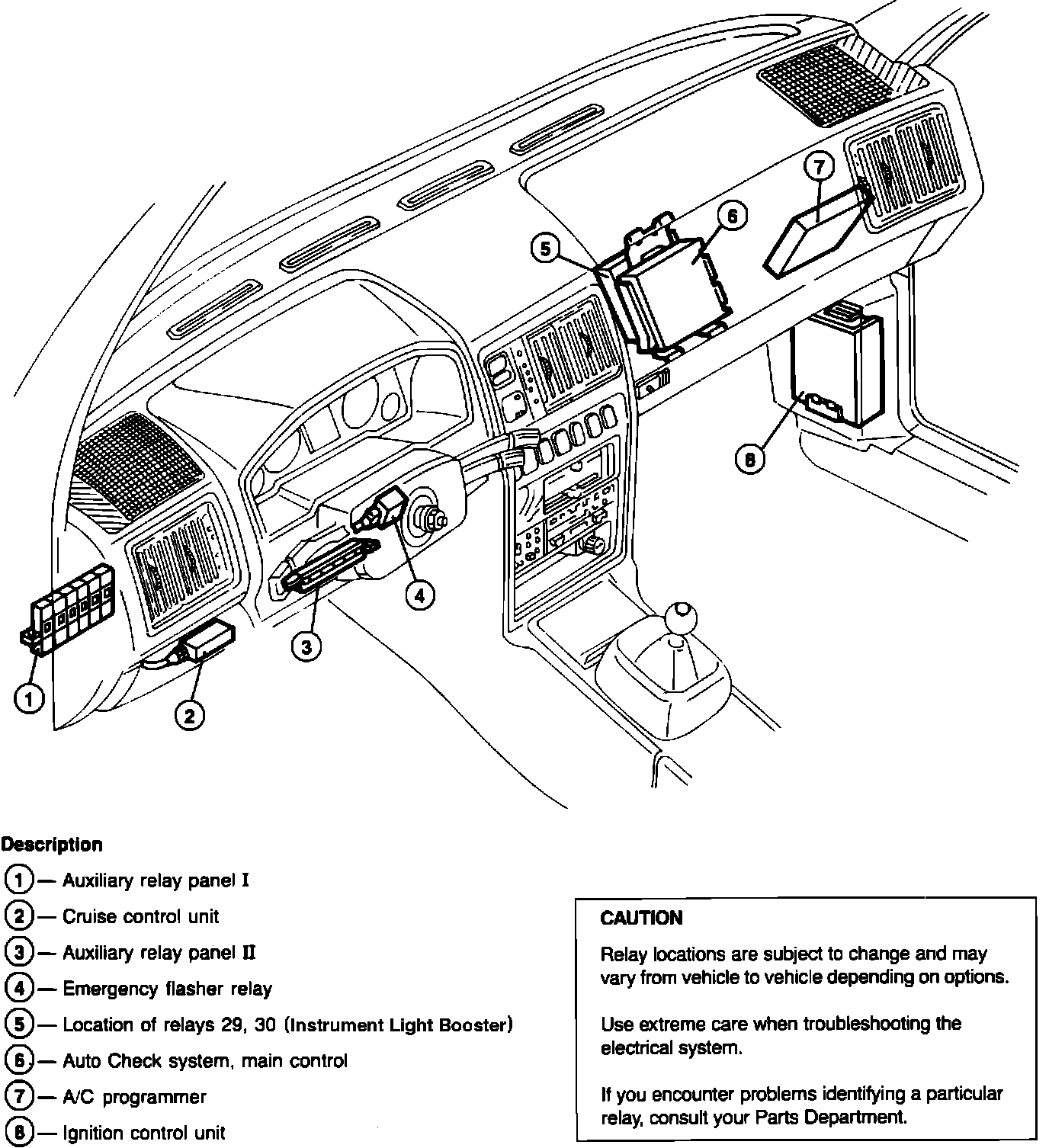

Control Unit/Relay Locations:
