Home
>>
Audi
>>
1986
>>
5000CD Turbo (Canada) L5-2226cc 2.22L SOHC Turbo (MC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
System Diagram

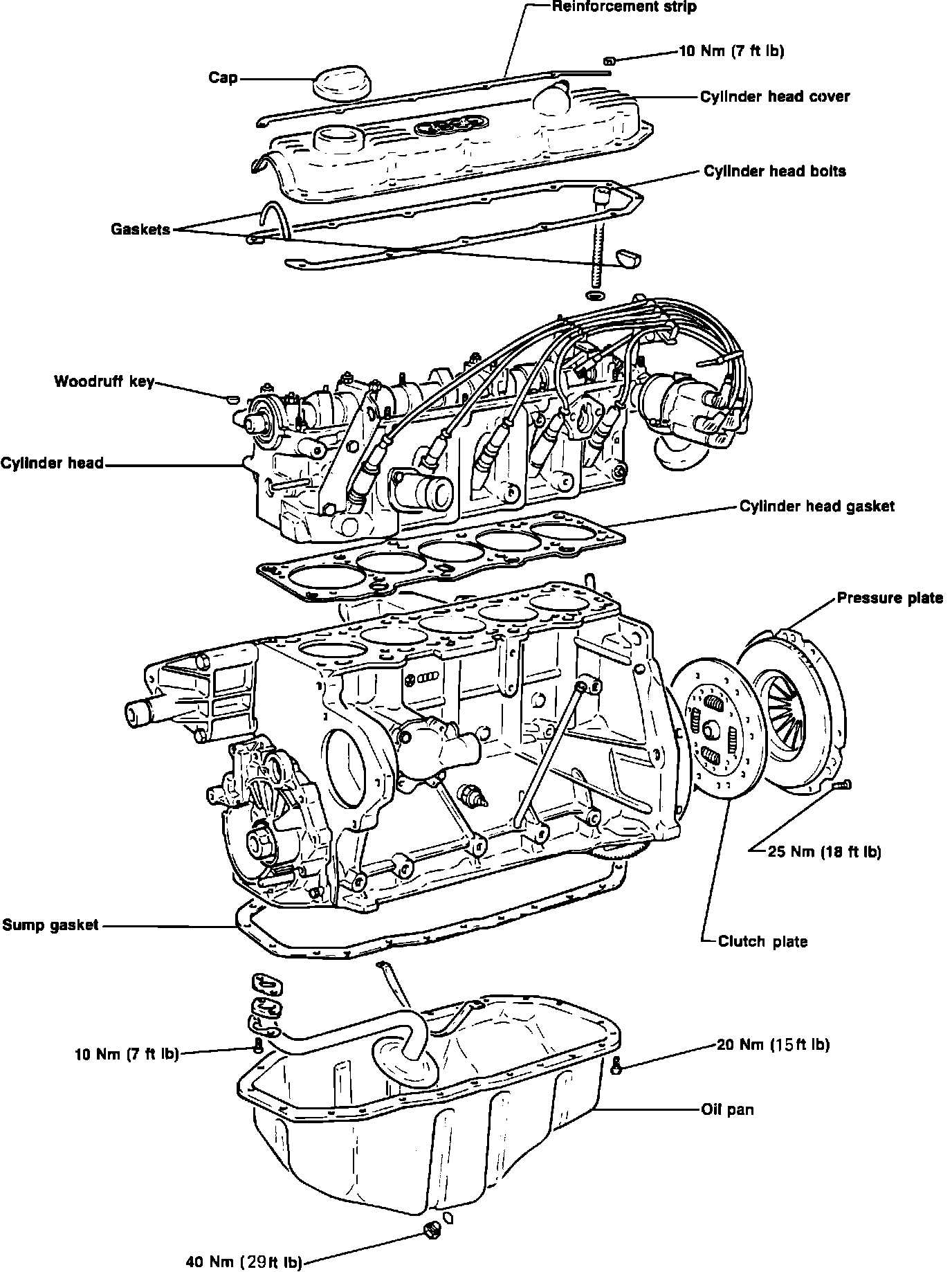

Engine Assembly:
