Home
>>
Audi
>>
1986
>>
4000CS Quattro L5-2144cc 2.14L SOHC (JT)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Fuse and Fusible Link Locations
>>
U.S. Models
U.S. Models

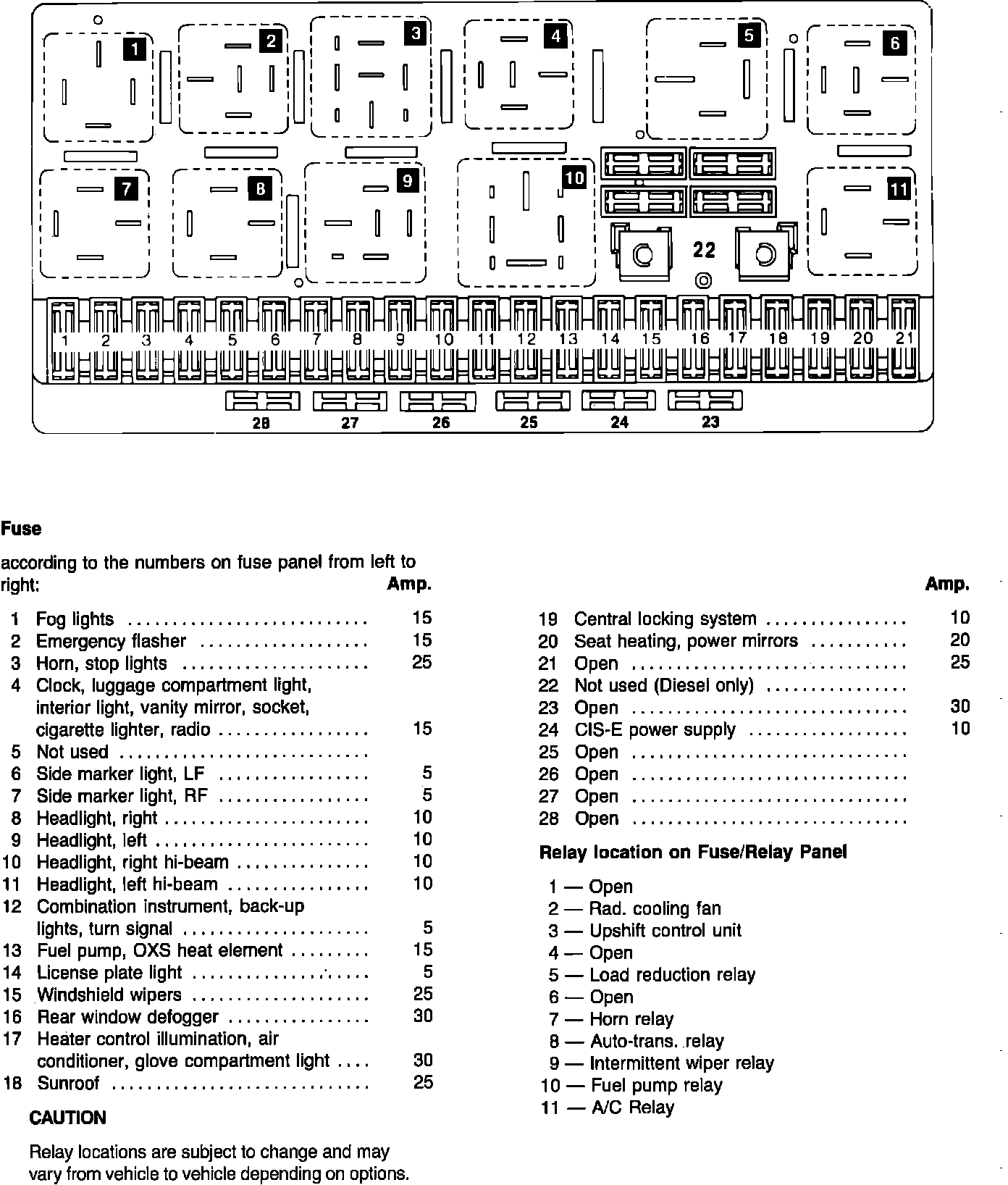

Fuse and Relay Panel. Wiring Diagram:
