Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Audi
>>
1986
>>
4000CS Quattro L5-2144cc 2.14L SOHC (JT)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Diagram Information and Instructions
>>
Diagrams By Track Number
>>
U.S. Models
>>
Tracks 194 Thru 333
>>
Track 308 Thru 318
Track 308 Thru 318

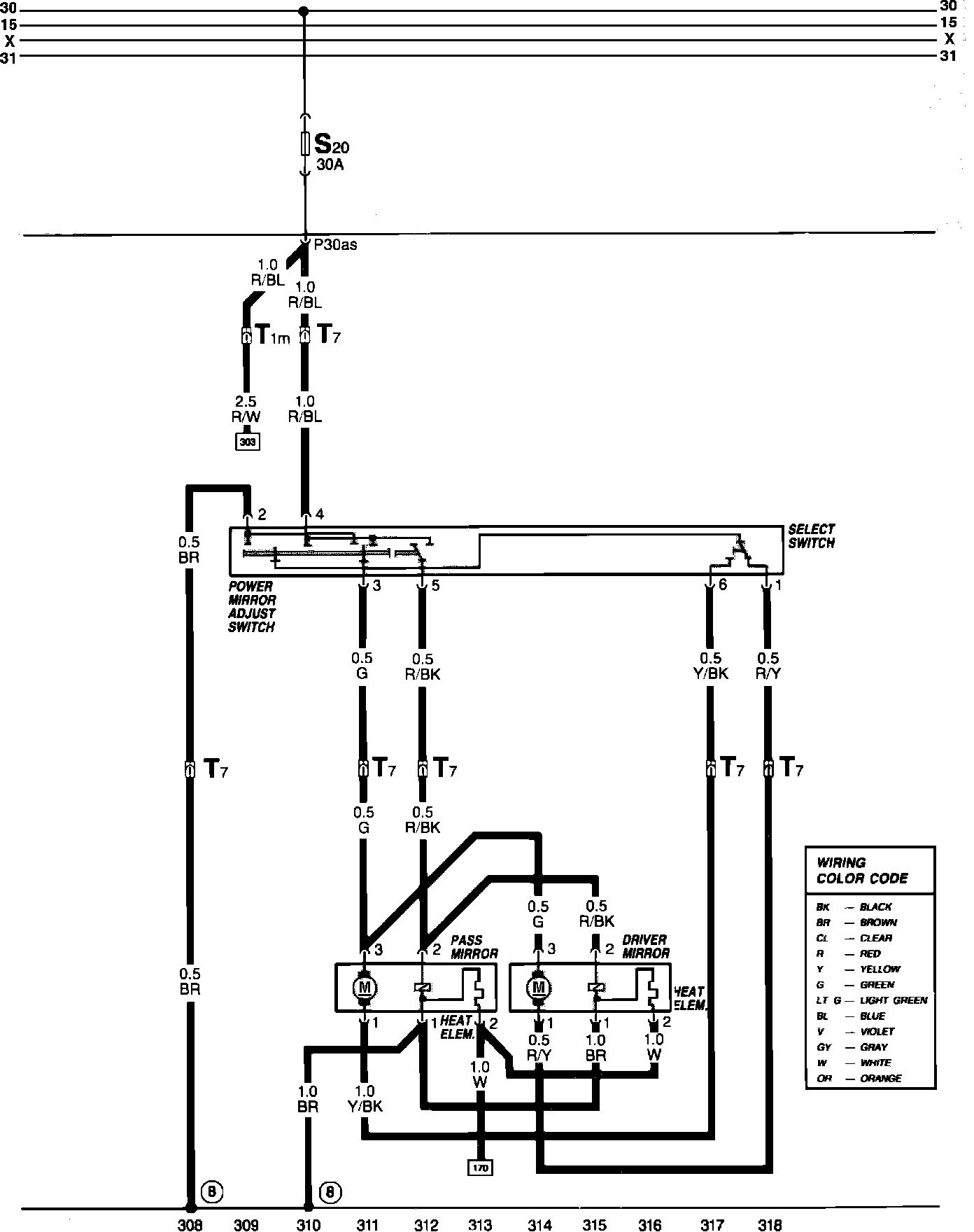

Power Mirrors. Wiring Diagram:
