4000CS Quattro L5-2144cc 2.14L SOHC (JT)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
Canada Models
Canada Models

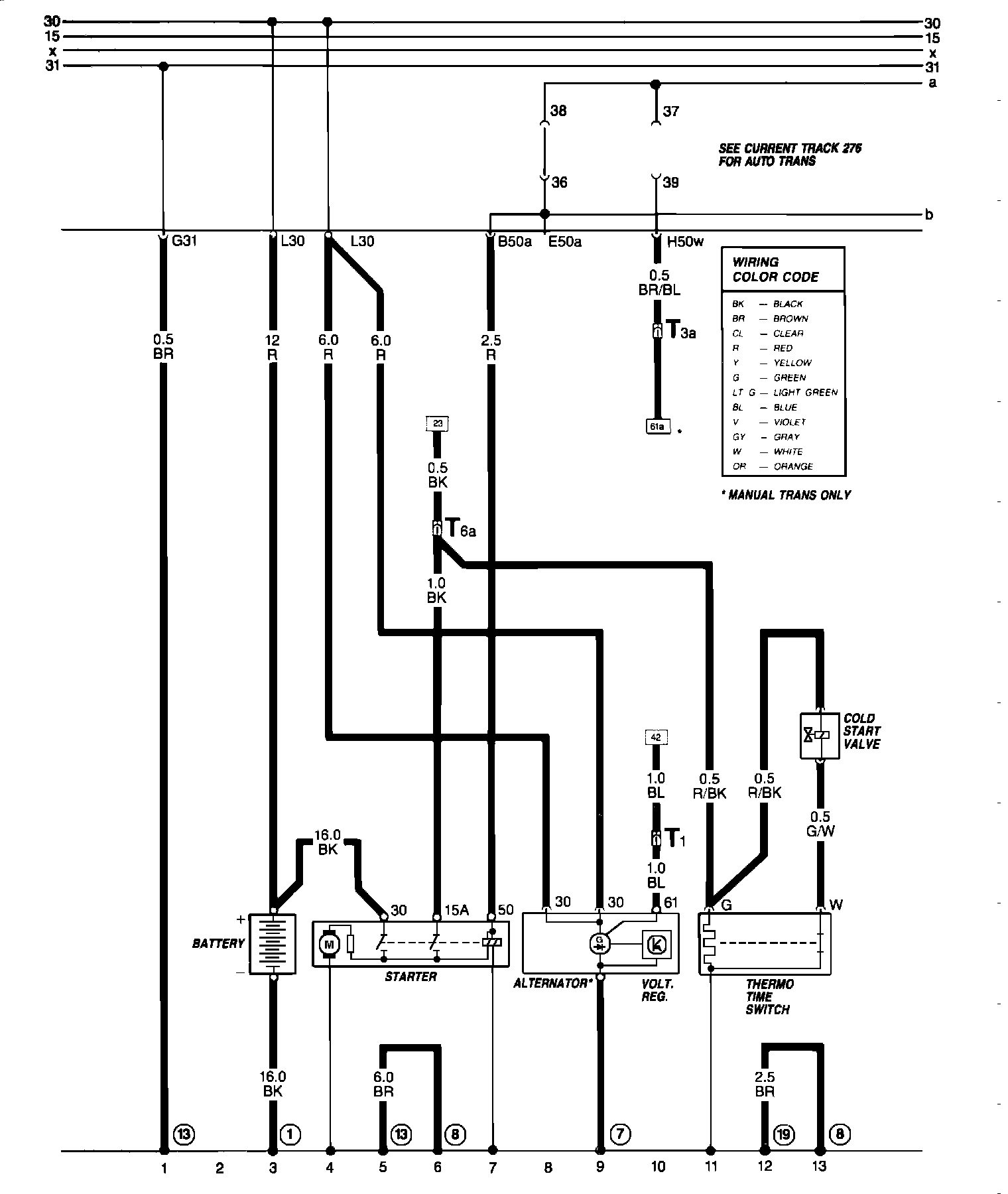

Starter and Charging System. Wiring Diagram:
