Exploded Views

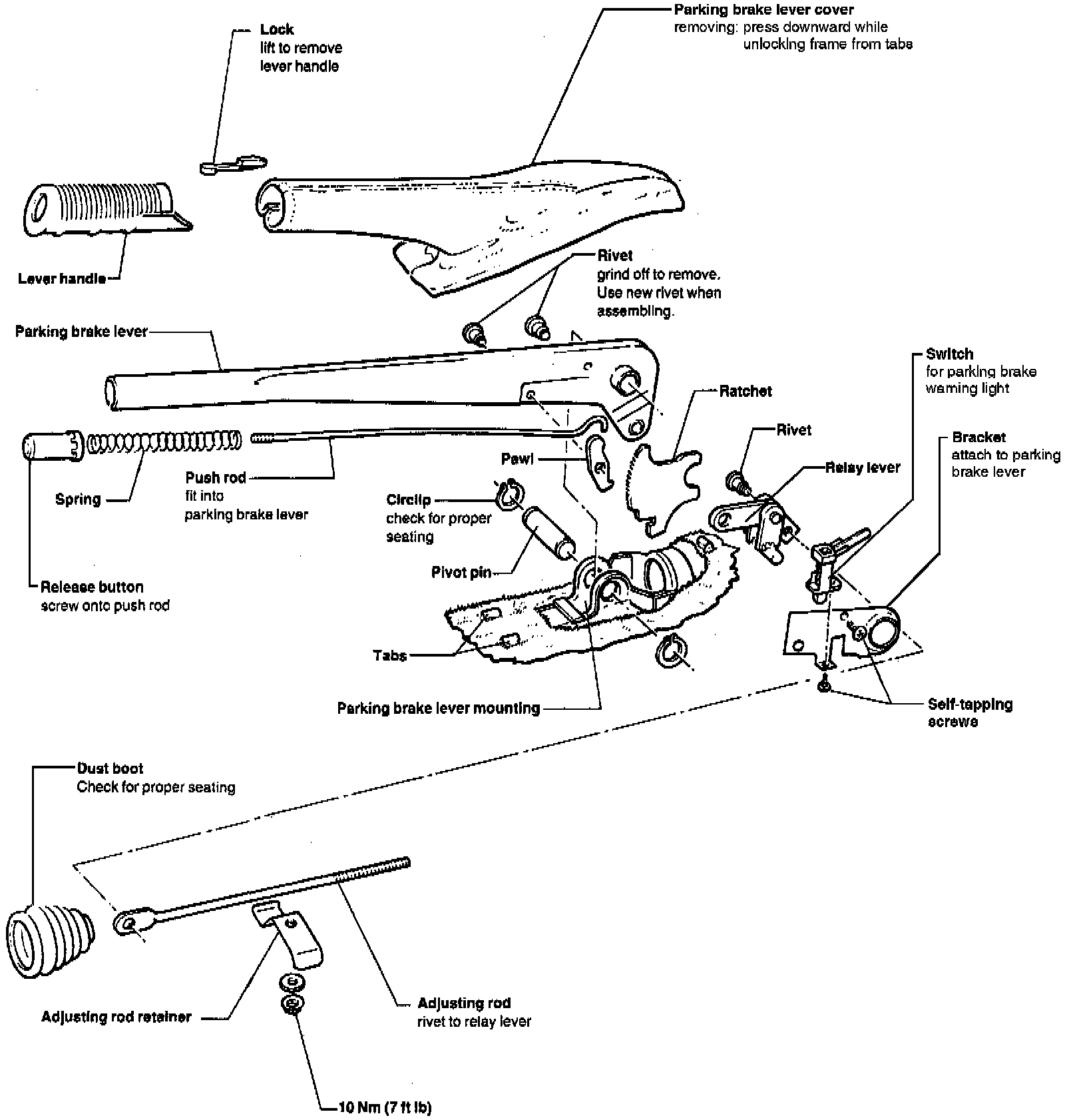

Parking Brake Lever, Diagram 1 Of 2:
Diagram 1 of 2

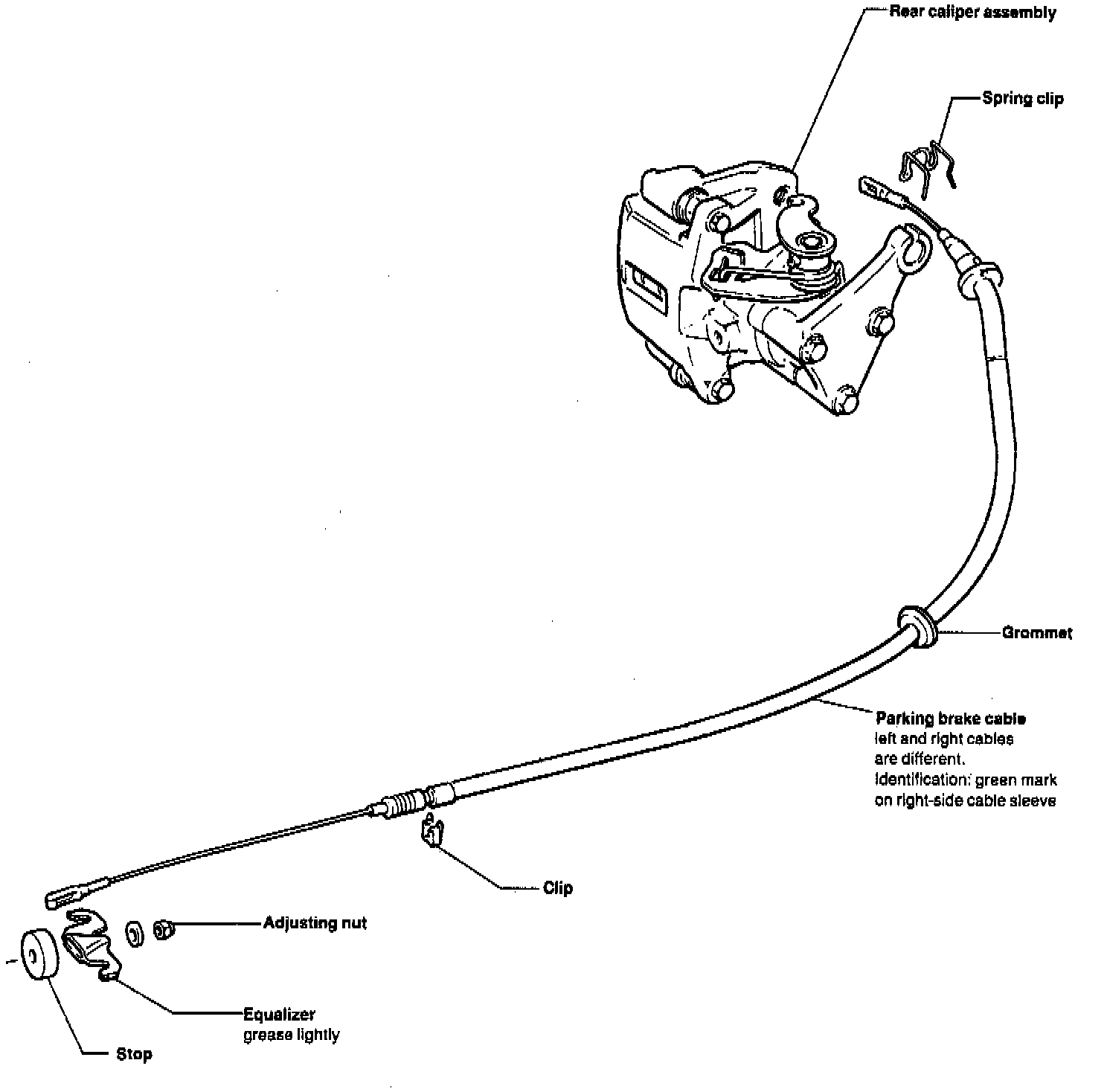

Parking Brake, Diagram 2 Of 2:
Diagram 2 of 2
