Home >> Audi >> 1986 >> 4000,S L4-1781cc 1.8L SOHC (MG) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Diagram Information and Instructions >> Diagrams By Track Number >> Track 246 Thru 261

Track 246 Thru 261

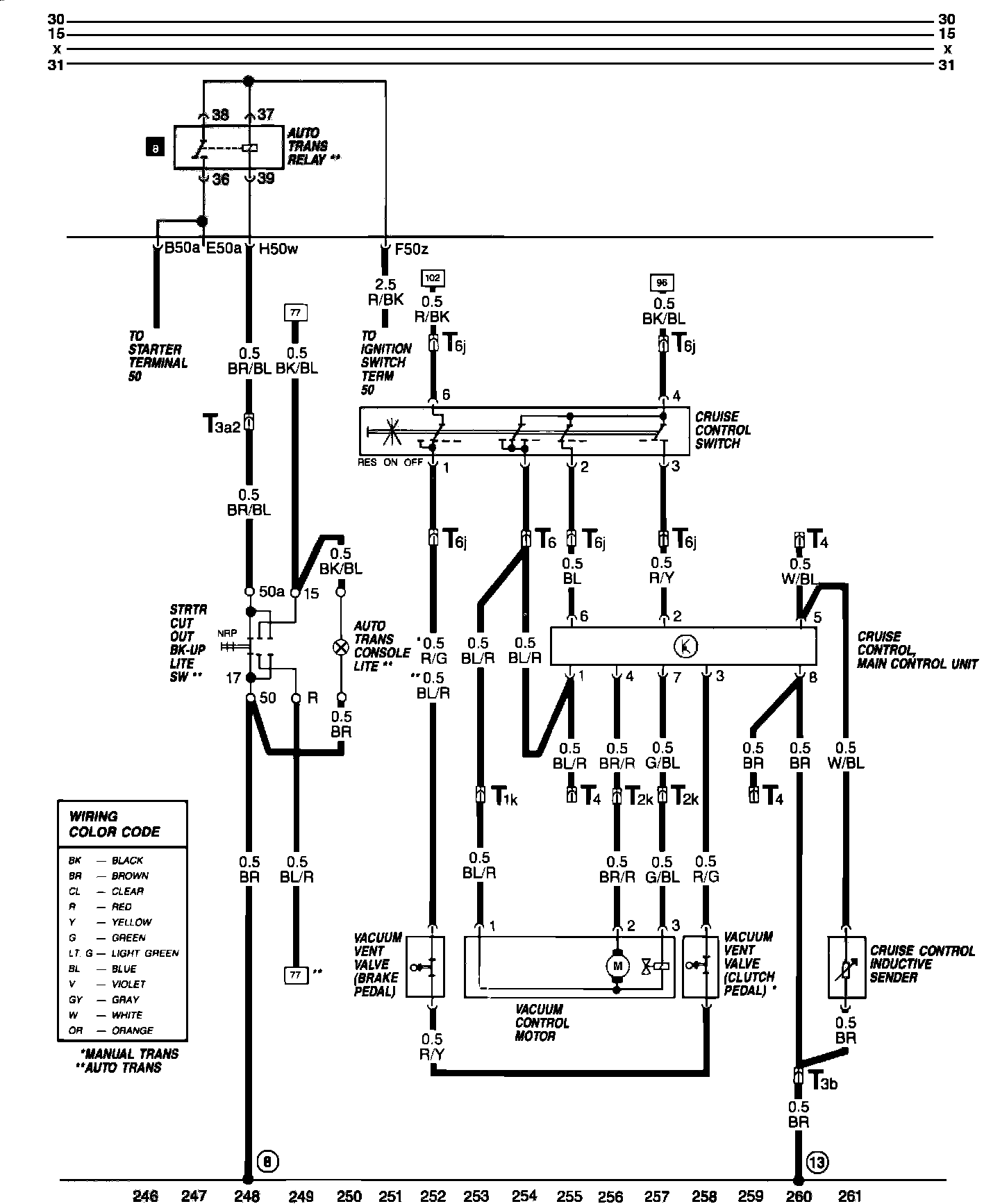

Cruise Control. Wiring Diagram:
