Heated Glass Element
Heated Glass Element

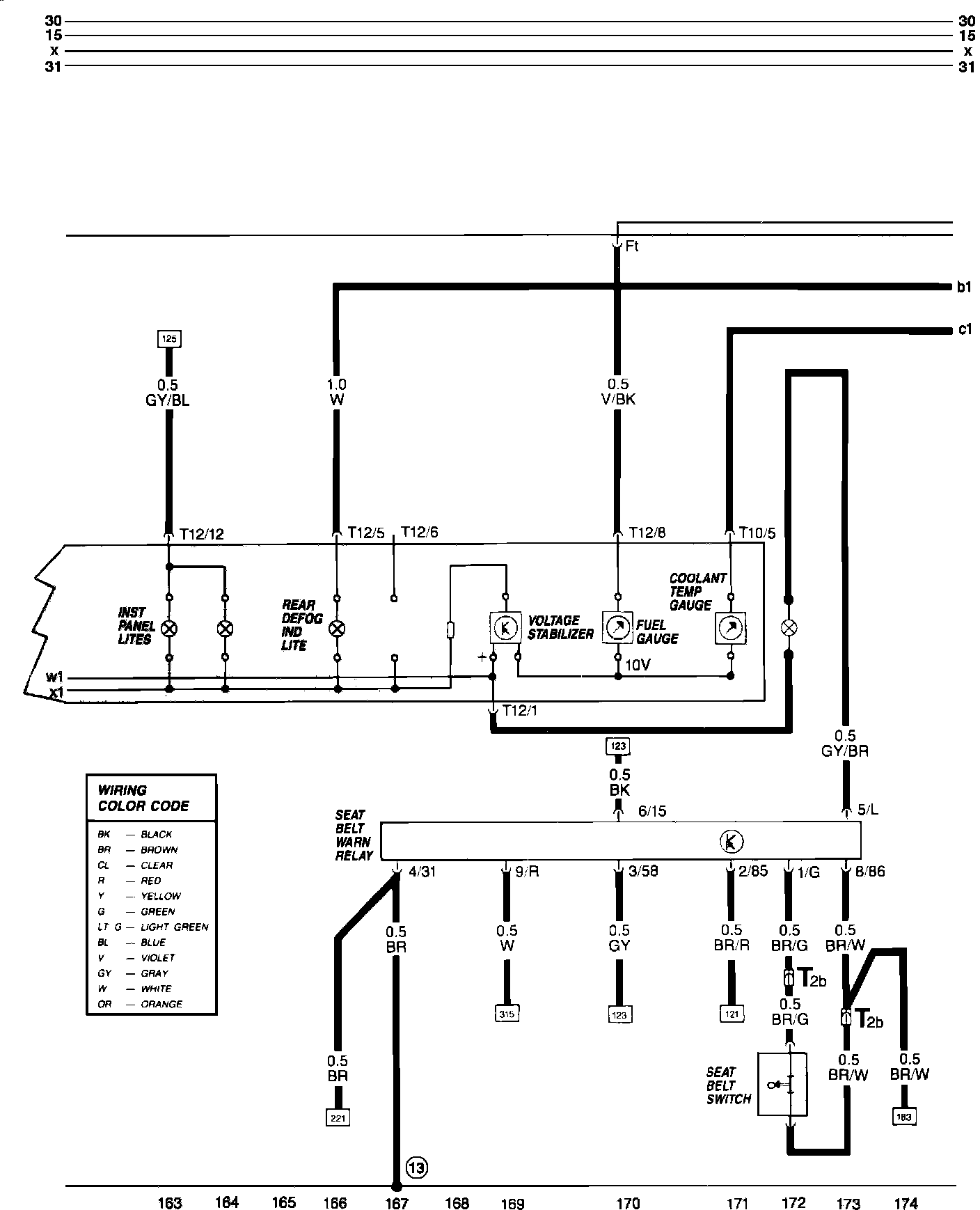

Instrument Cluster, Seatbelt and Rear Window Defogger. Wiring Diagram:
