Home
>>
Audi
>>
1983
>>
5000,S L5-2144cc 2.14L SOHC (WD)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Non-Turbo
Non-Turbo

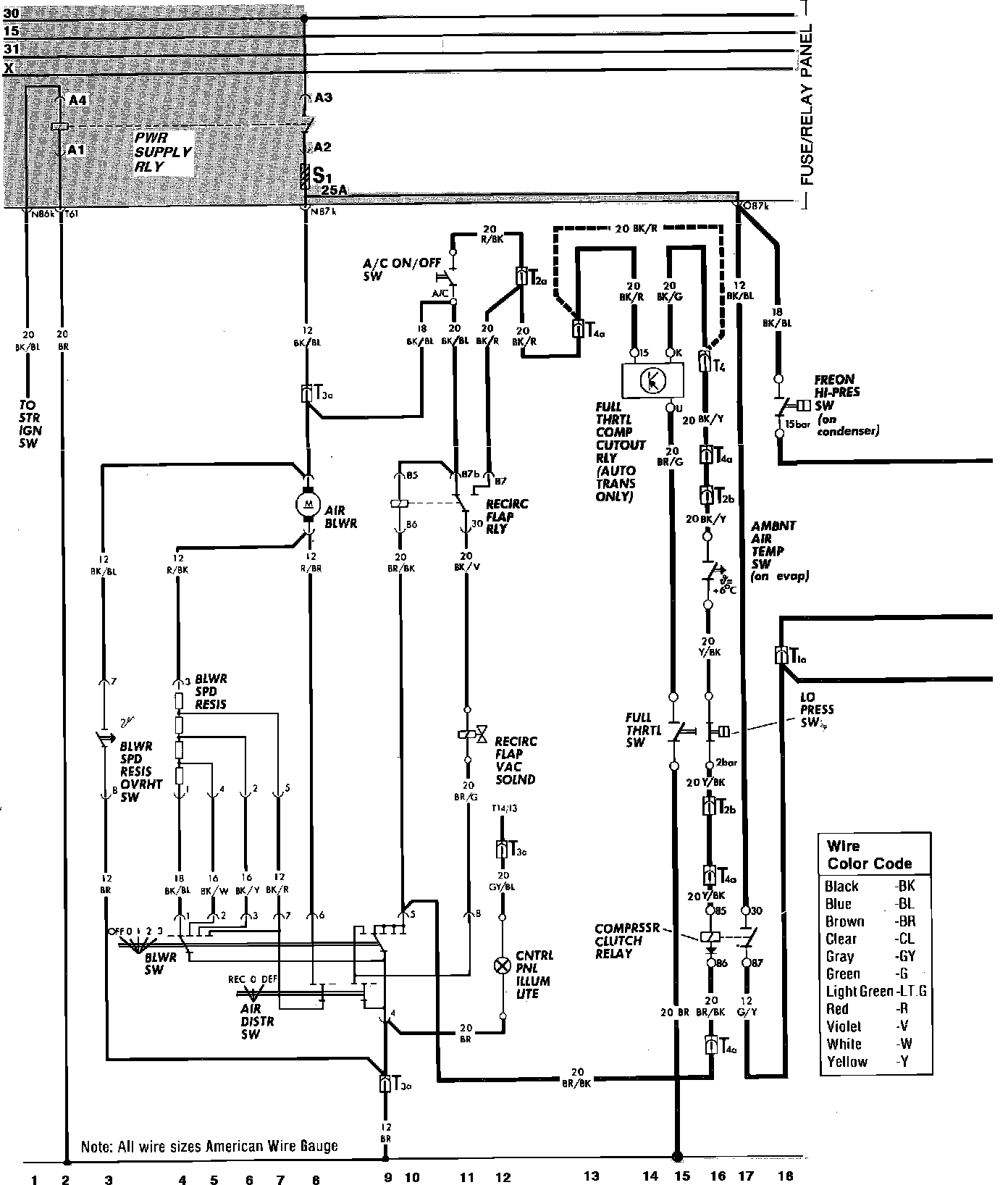

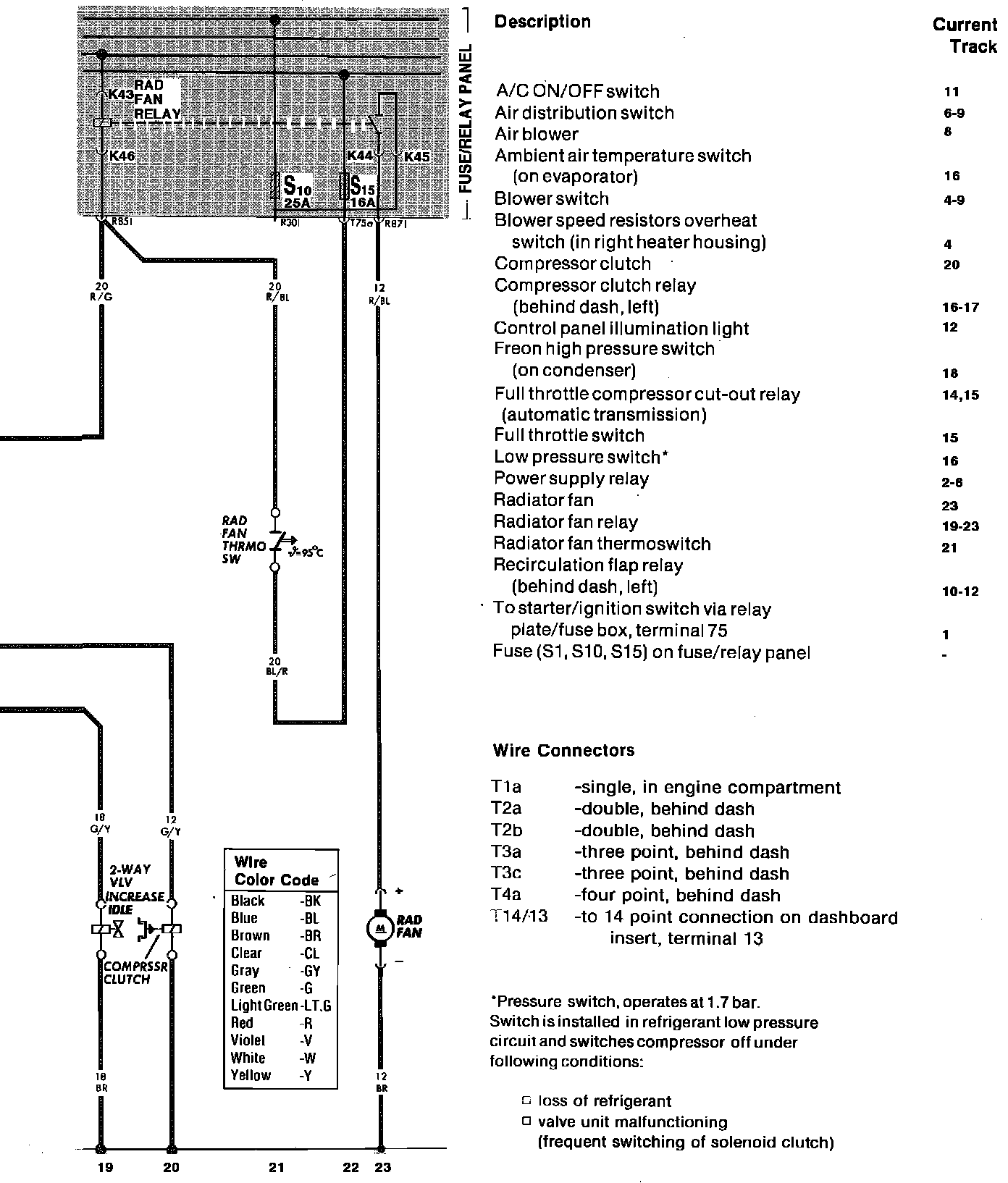

Air Conditioning:
Air Conditioning:
