Home >> Audi >> 1983 >> 5000,S L5-2144cc 2.14L SOHC (WD) >> Repair and Diagnosis >> Brakes and Traction Control >> Power Brake Assist >> Hydraulic Brake Booster >> Testing and Inspection

Hydraulic Brake Booster: Testing and Inspection

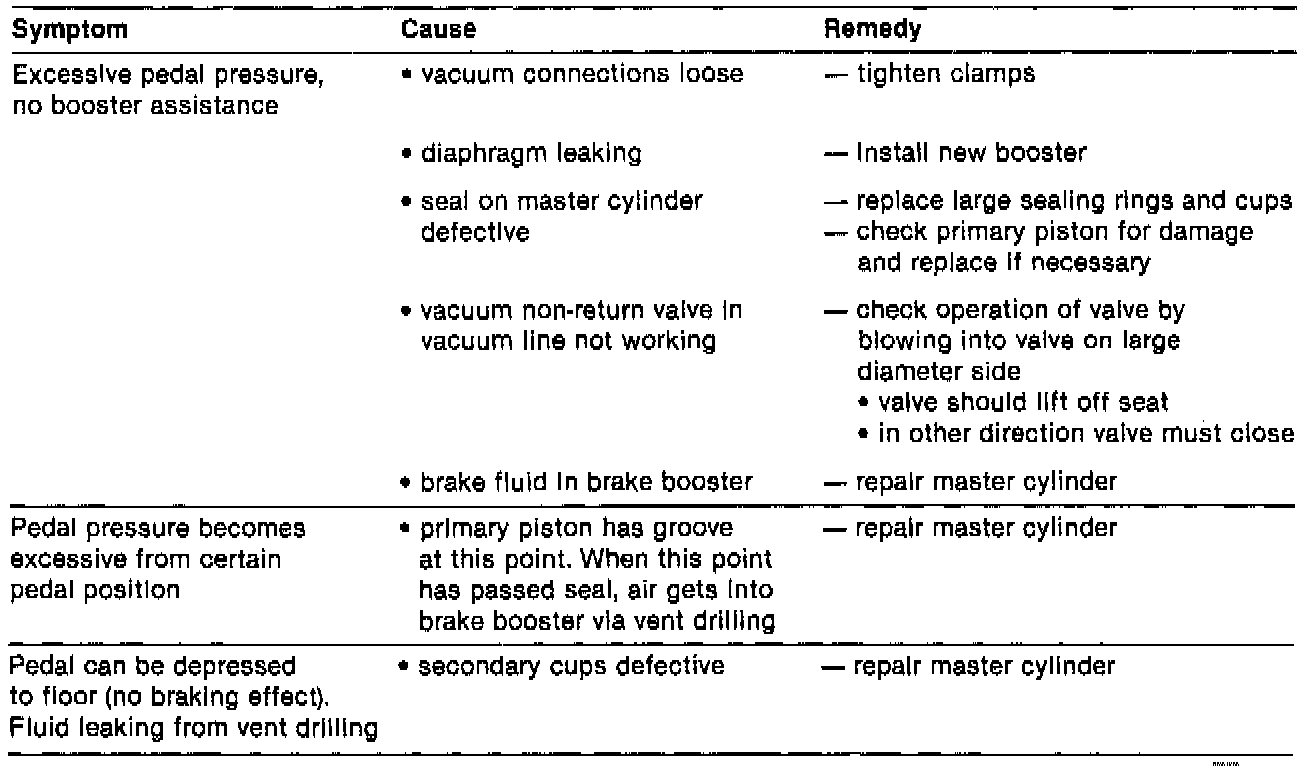

Brake Booster/Master Cylinder Troubleshoot Chart, 1 Of 1:
