Home >> Audi >> 1983 >> 5000,S (Calif.) L5-2144cc 2.14L SOHC (WE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Diagram Information and Instructions >> Diagrams By Track Number >> Turbo >> Track 59 Thru 80

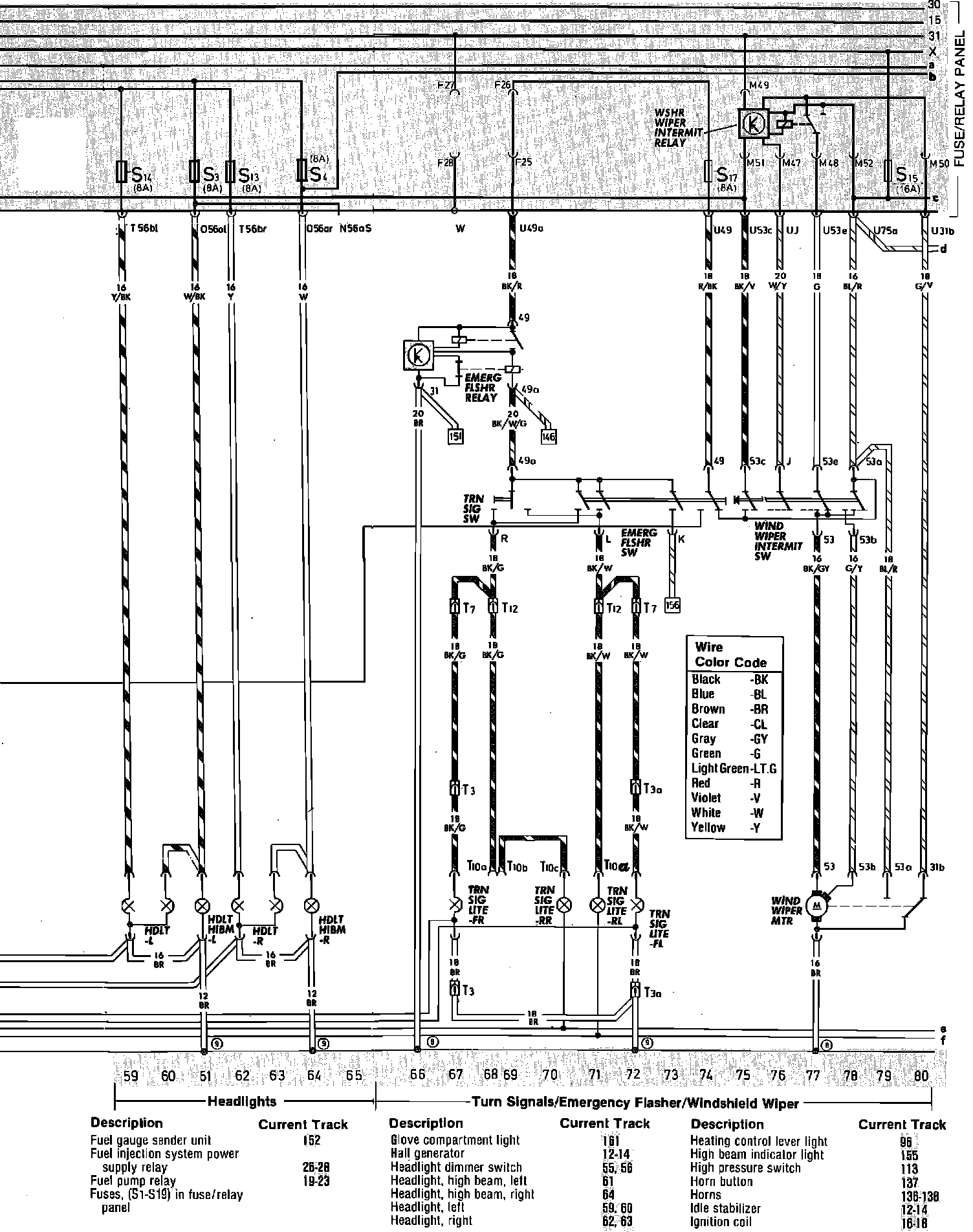

Track 59 Thru 80

Headlights and Turn Signals/Emergency Flasher/Windshield Wiper:
