Home
>>
Audi
>>
1983
>>
5000,S (Calif.) L5-2144cc 2.14L SOHC (WE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Diagram Information and Instructions
>>
Diagrams By Track Number
>>
Turbo
>>
Track 109 Thru 132
Track 109 Thru 132

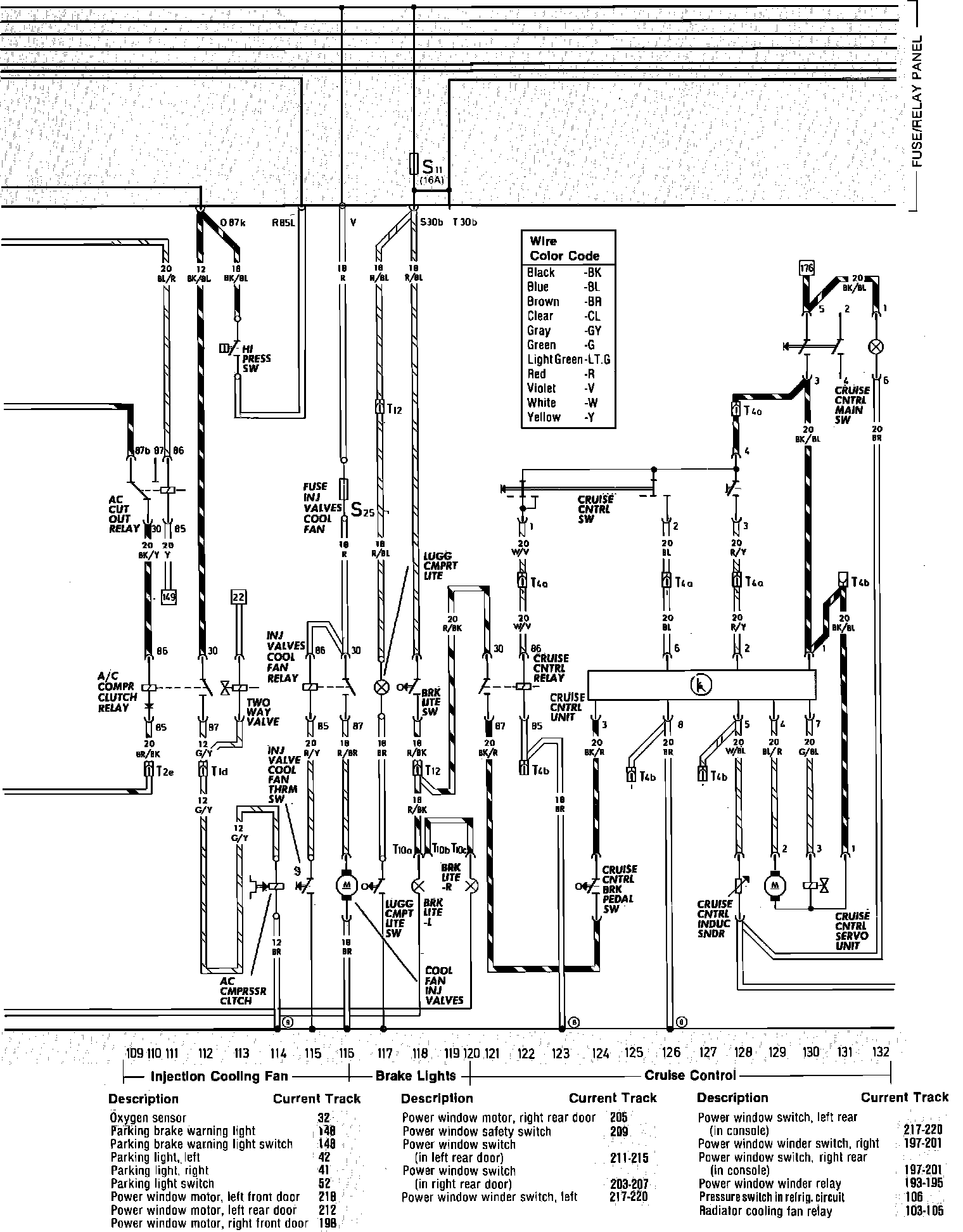

Injection Cooling Fan, Brake Lights and Cruise Control:
