Non-Turbo
>>
Track 86 Thru 106
Track 86 Thru 106

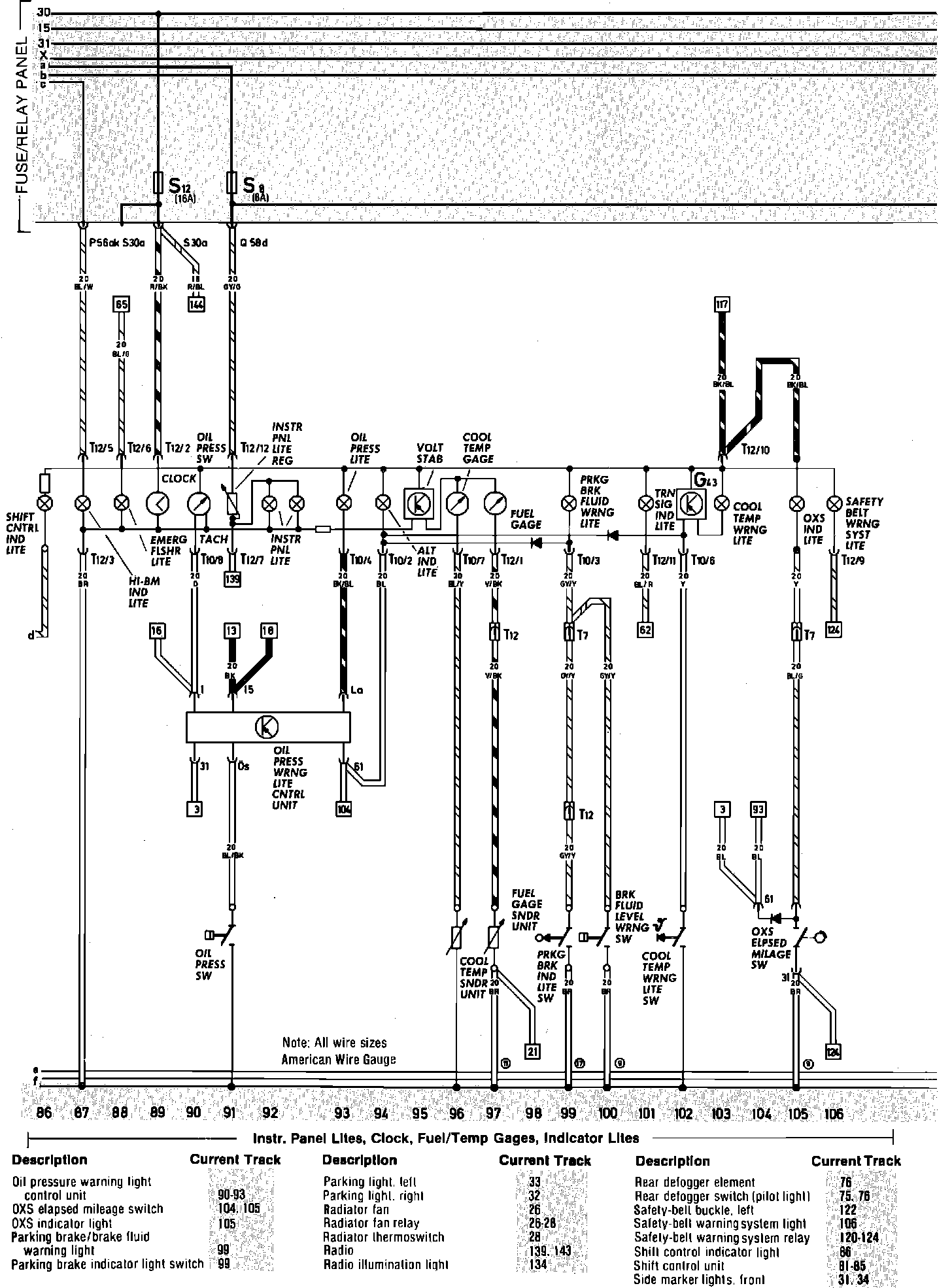

Instrument Panel Lights, Clock, Fuel/Temp. Gauges and Indicator Lights:
