Home >> Audi >> 1983 >> 5000,S (Calif.) L5-2144cc 2.14L SOHC (WE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Diagram Information and Instructions >> Diagrams By Track Number >> Non-Turbo >> Track 1 Thru 24

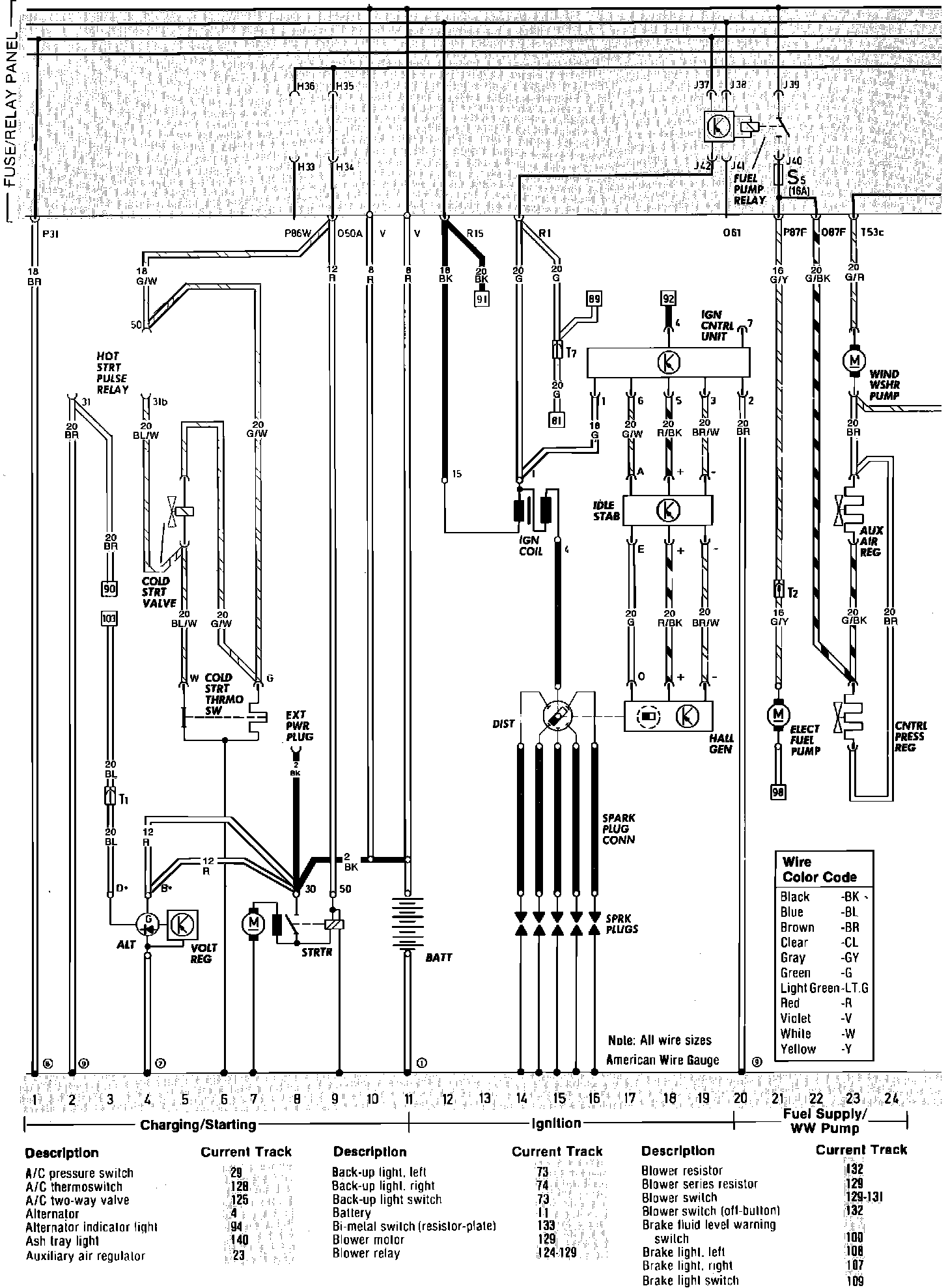

Track 1 Thru 24

Charging/Starting, Ignition, and Fuel Supply/WW Pump:
