Body Dimension - Correction

Applies To Group
Audi Coupe GT


ALL 50

Subject Key Points Number

Floor Section Body dimension correction


85-50-05


Part Identifier A170 August 23, 1985

Body Dimension Correction:

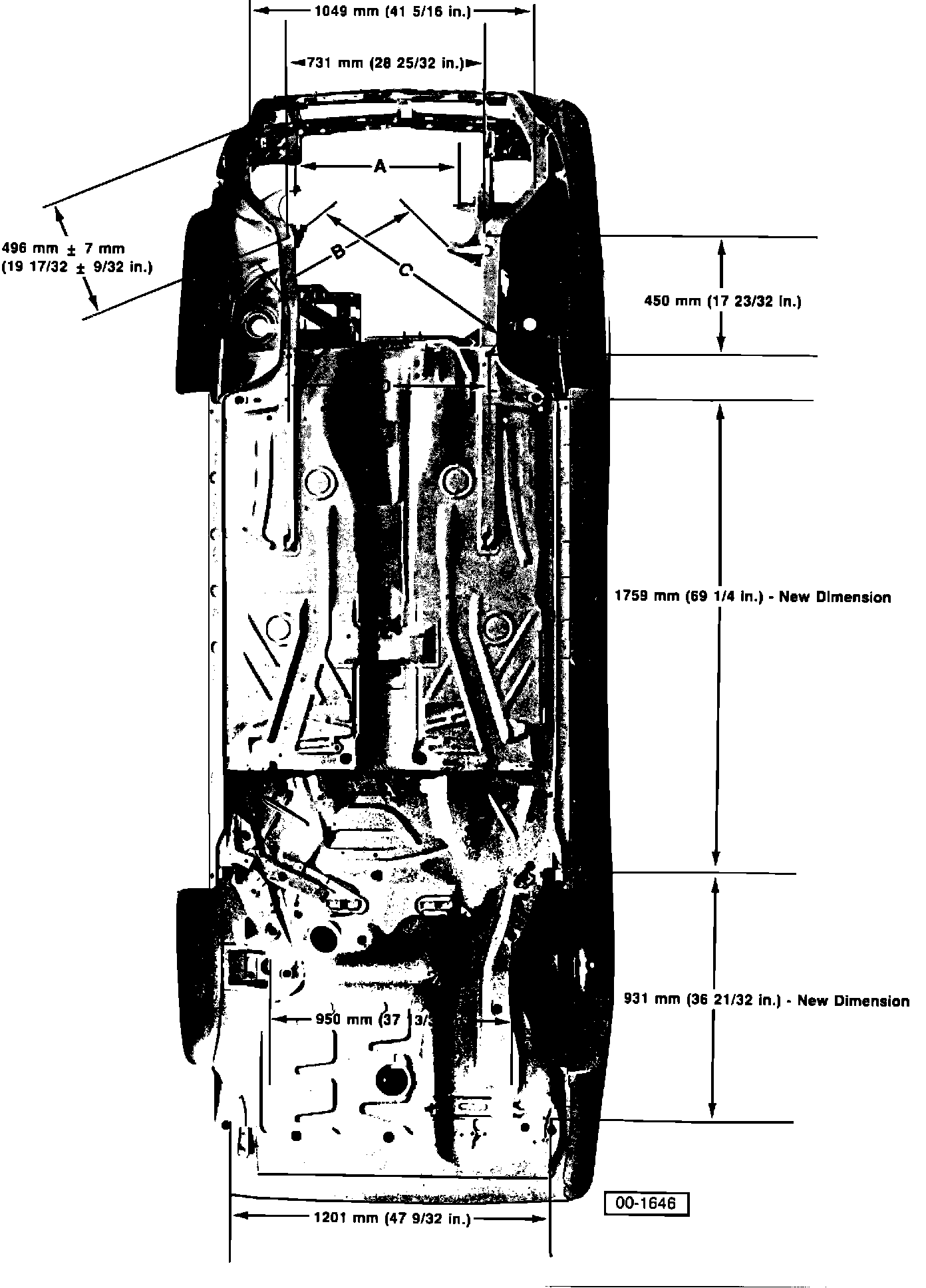

Please note the new floor section dimensions for the Audi Coupe GT.
Note

Measurement Key

A = 616 mm (24 1/4 in.) B = 729 mm (28 11/16 in.) C = 844 mm (33 7/32 in.) D = 722 mm (28 7/16 in.)

Where no tolerance is given all dimensions are +/- 3 mm (1/8 in.)
