Fuel Tank, Removing and Installing
Fuel Tank, Removing and Installing

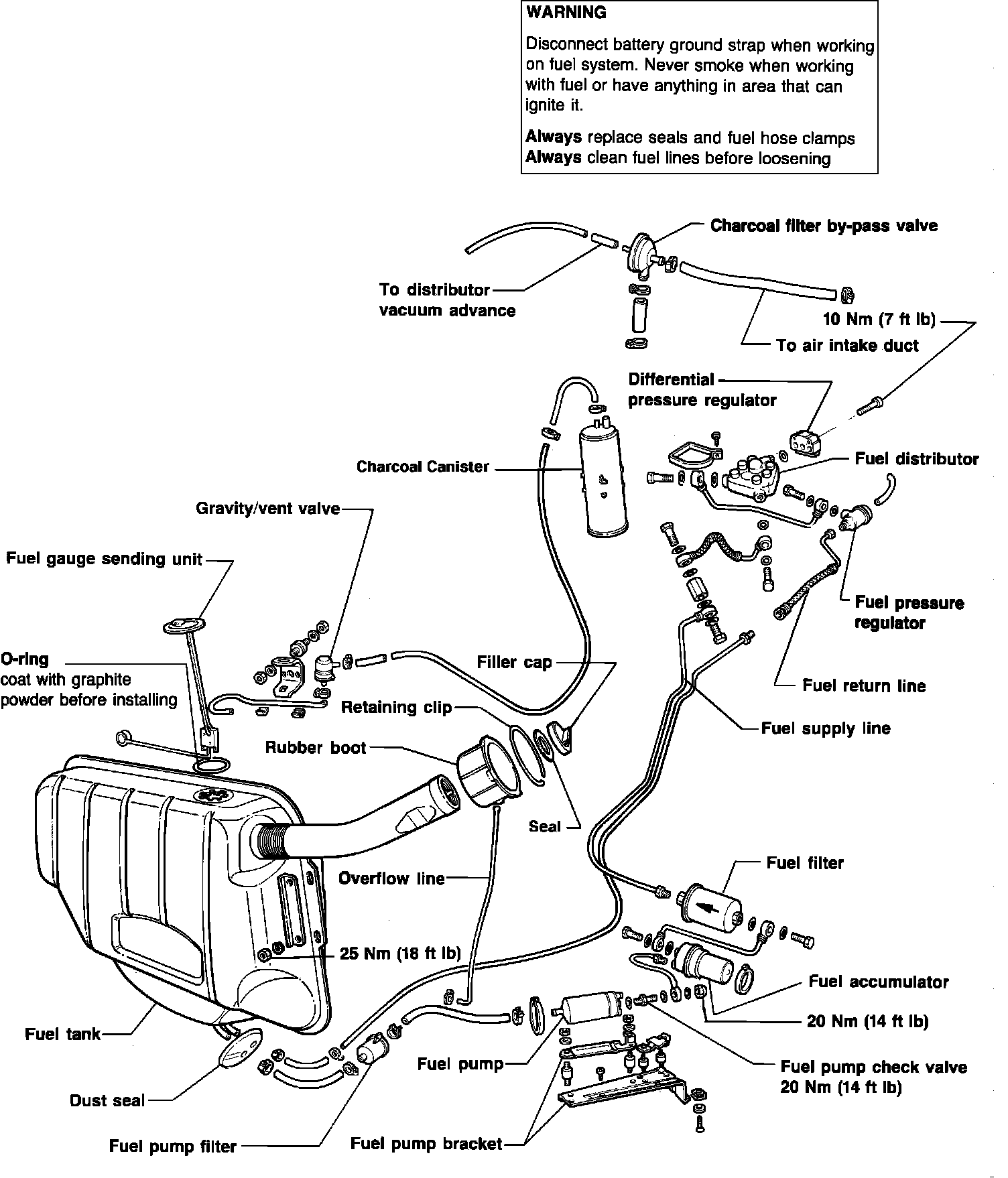

Fig. 59 Fuel Supply Component Layout:
