Home >> Audi >> 1983 >> 4000,S L5-2144cc 2.14L SOHC (WE) >> Repair and Diagnosis >> Maintenance >> Filters >> Fuel Filter >> Locations

Fuel Filter: Locations

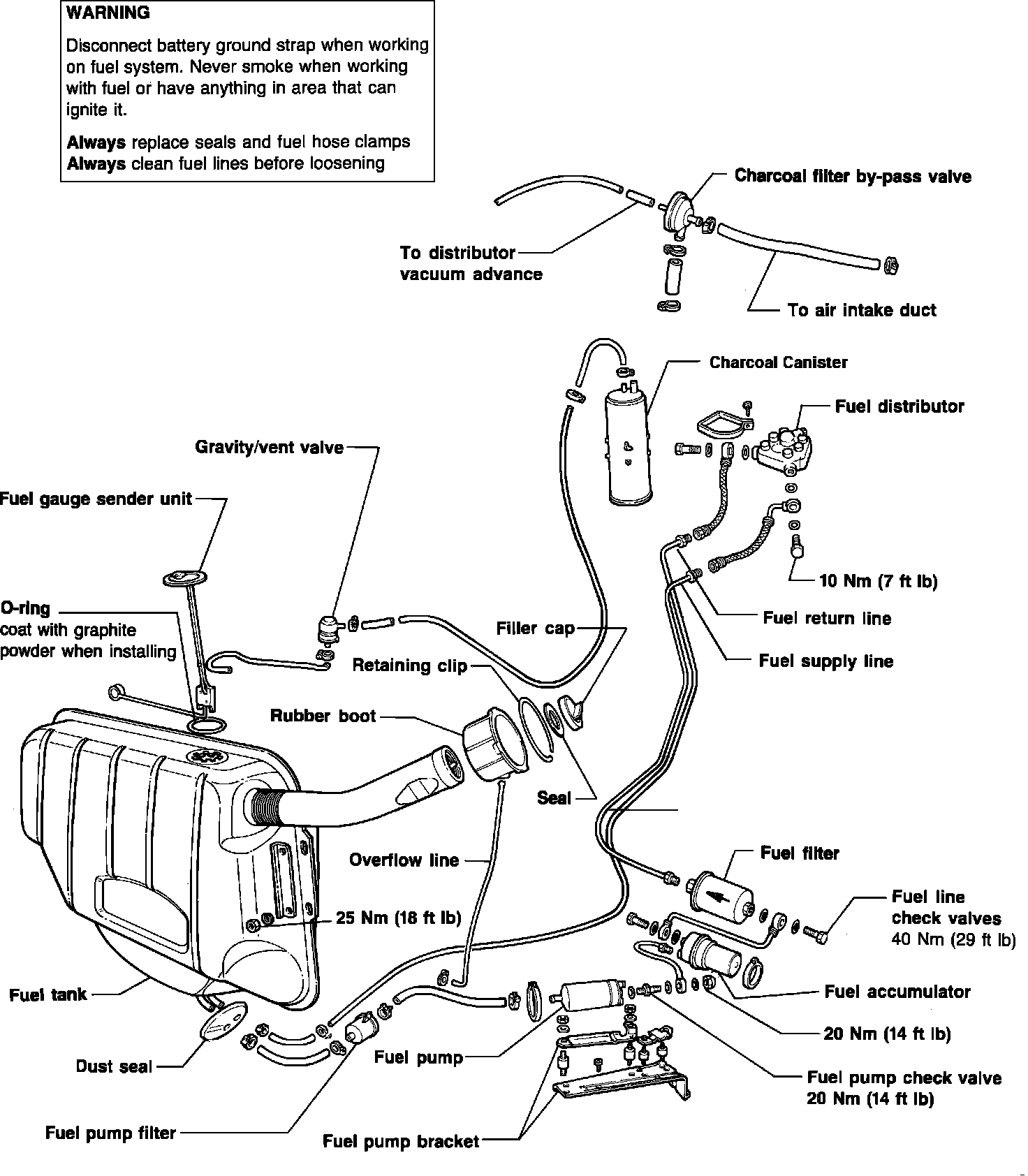

Fig. 60 Fuel Supply Component Layout:
