Audi
>>
1983
>>
4000,S L4-1715cc 1.7L SOHC (WT)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

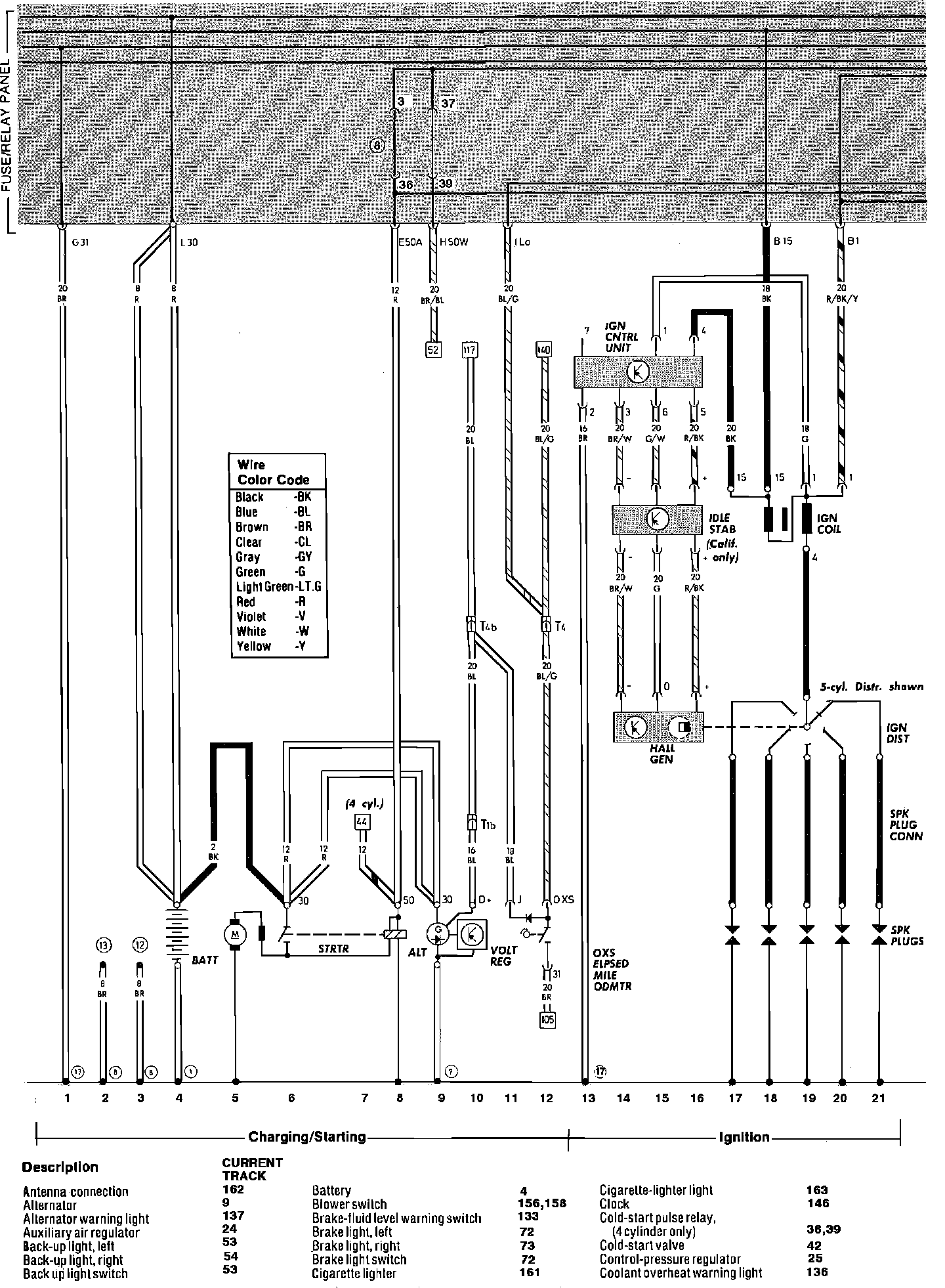

Charging/Ignition and Ignition:
