Home
>>
Audi
>>
1983
>>
4000,S L4-1715cc 1.7L SOHC (WT)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

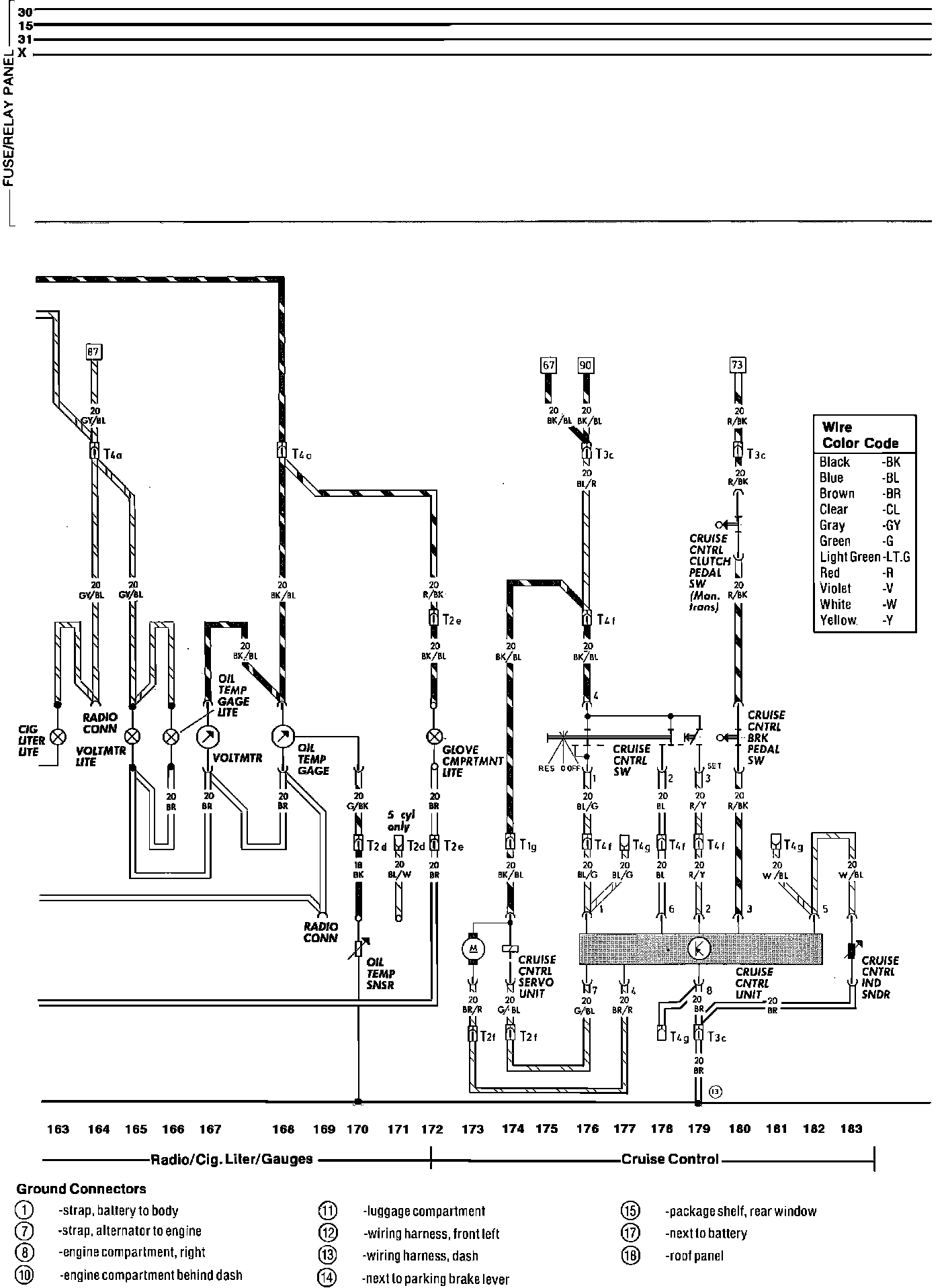

Radio/Cigarette Lighter/Gauges and Cruise Control. Wiring Diagram:
