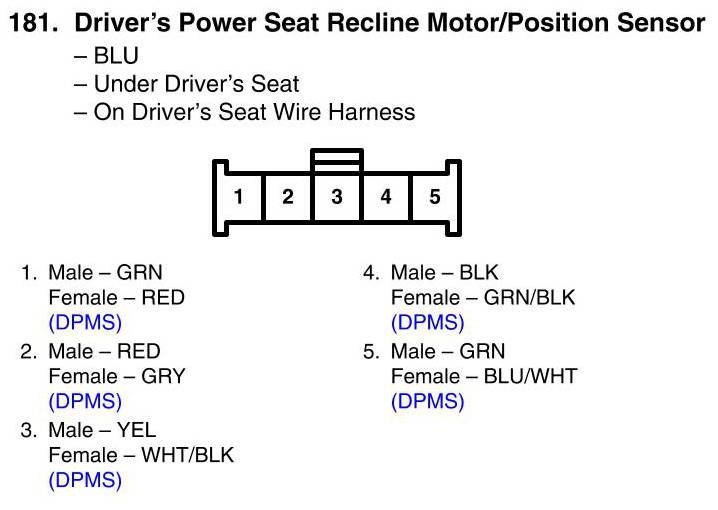

View 181 - Driver's Power Seat Recline Motor/Position Sensor Connector View
View 181 - Driver's Power Seat Recline Motor/Position Sensor Connector View
