Collision Avoidance and Parking Assist Systems
>>
System Diagram
>>

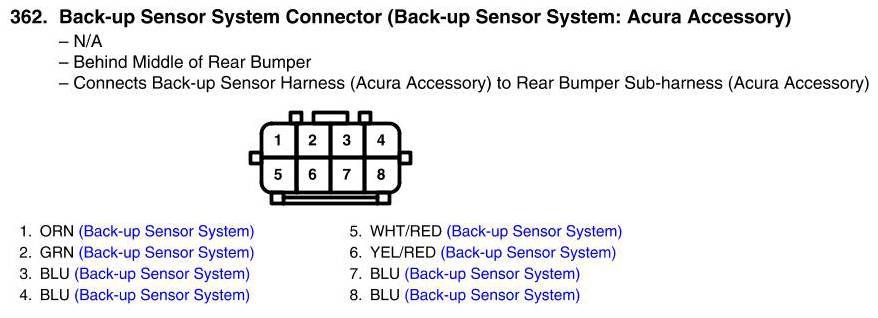

Back-Up Sensor System Connector Connector View
Back-Up Sensor System Connector Connector View
