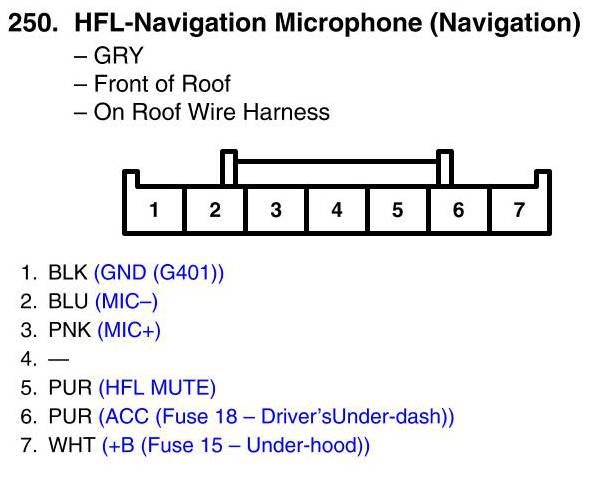

View 250 - HFL-Navigation Microphone (Navigation) Connector View
View 250 - HFL-Navigation Microphone (Navigation) Connector View
