Home
>>
Acura
>>
2012
>>
TL AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Relay Box
>>

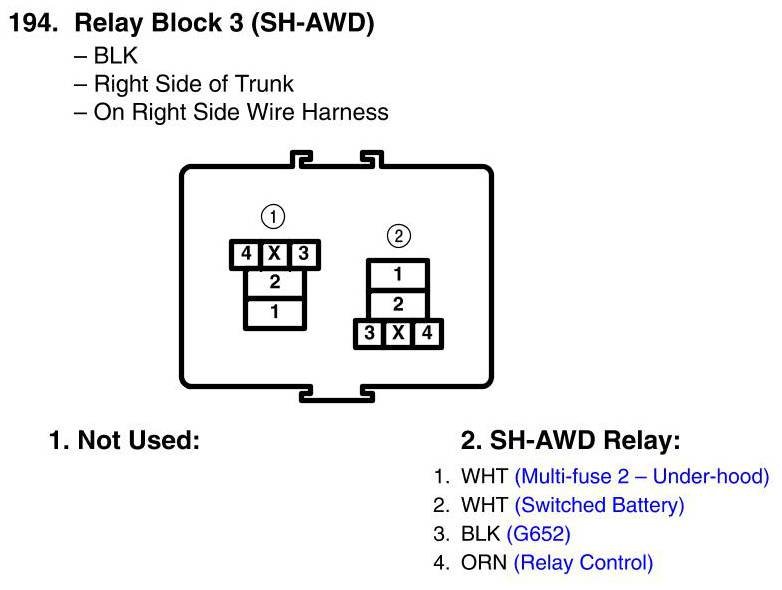

Relay Block 3 (SH-AWD) Connector View
Relay Block 3 (SH-AWD) Connector View
