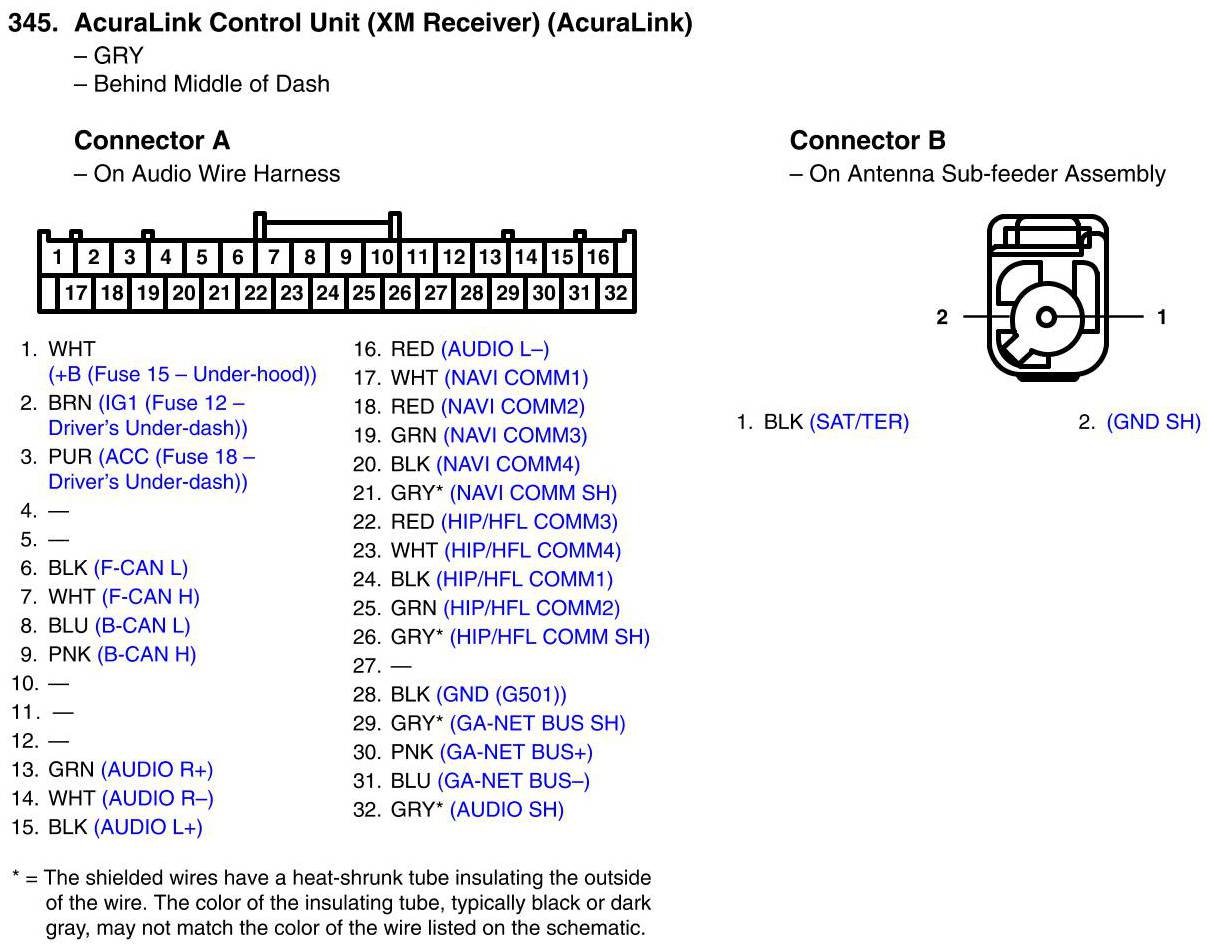

View 345 - AcuraLink Control Unit (XM Receiver) (AcuraLink) Connector View
View 345 - AcuraLink Control Unit (XM Receiver) (AcuraLink) Connector View
