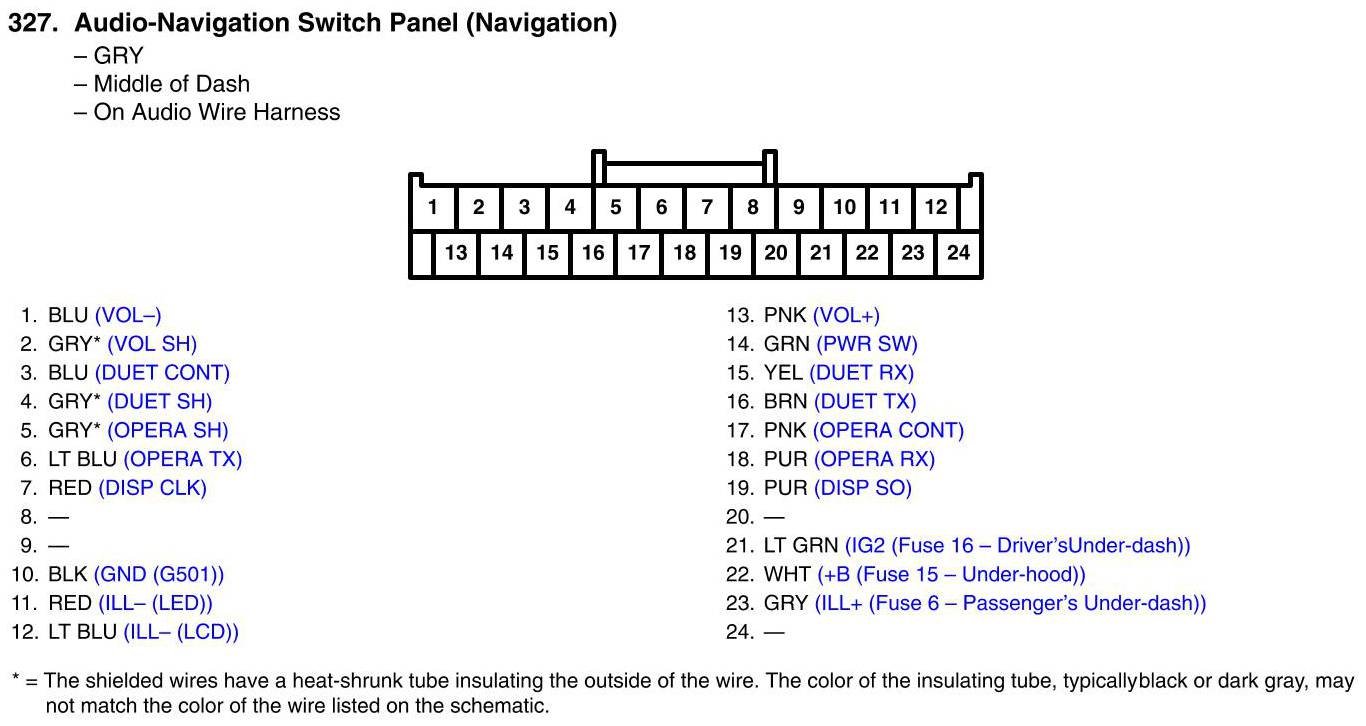

View 327 - Audio-Navigation Switch Panel (Navigation) Connector View
View 327 - Audio-Navigation Switch Panel (Navigation) Connector View
