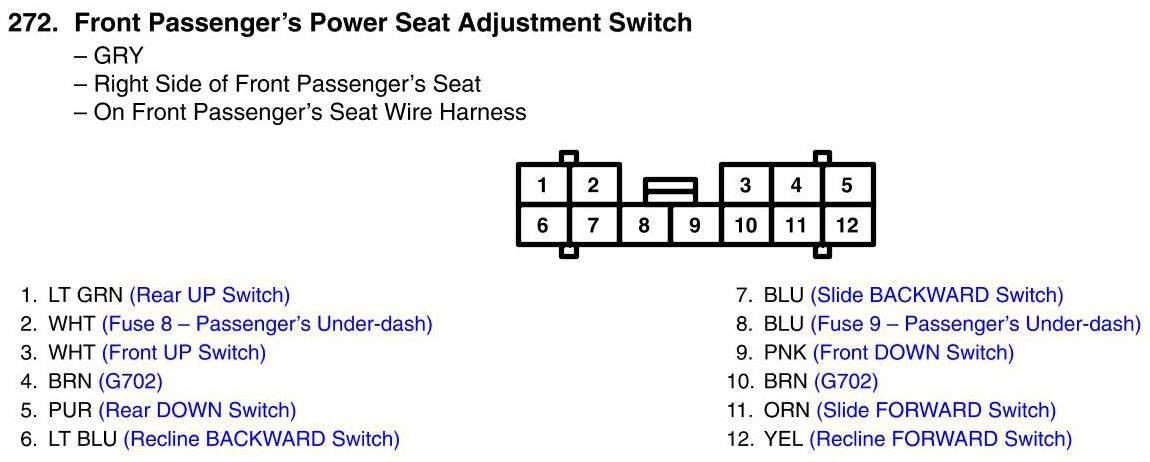

View 272 - Front Passenger's Power Seat Adjustment Switch Connector View
View 272 - Front Passenger's Power Seat Adjustment Switch Connector View
