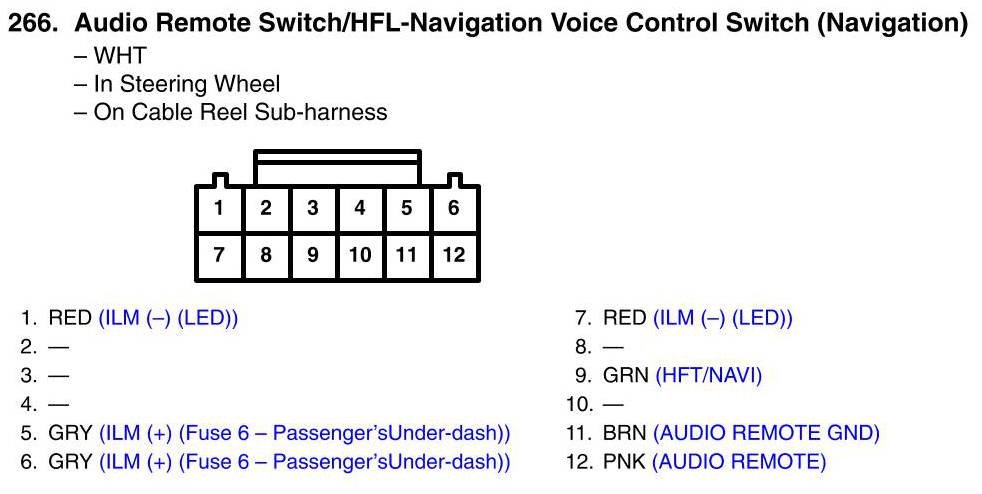

View 266 - Audio Remote Switch/HFL-Navigation Voice Control Switch (Navigation) Connector View
View 266 - Audio Remote Switch/HFL-Navigation Voice Control Switch (Navigation) Connector View
