Acura
>>
2012
>>
TL AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

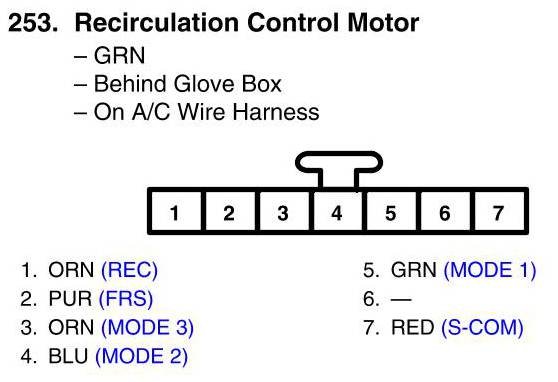

View 253 - Recirculation Control Motor Connector View
View 253 - Recirculation Control Motor Connector View
