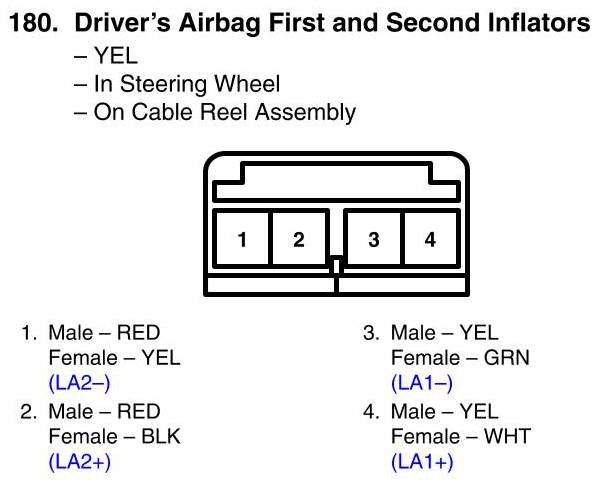

View 180 - Driver's Airbag First And Second Inflators Connector View
View 180 - Driver's Airbag First And Second Inflators Connector View
