Blind Spot Module
>>

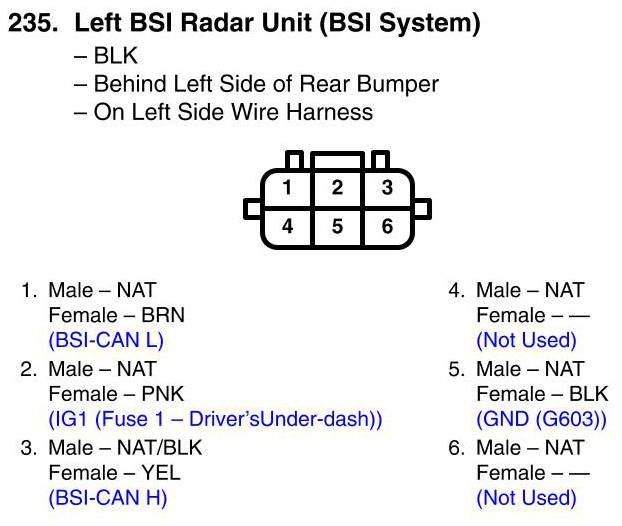

Left BSI Radar Unit (BSI System) Connector View
Left BSI Radar Unit (BSI System) Connector View
