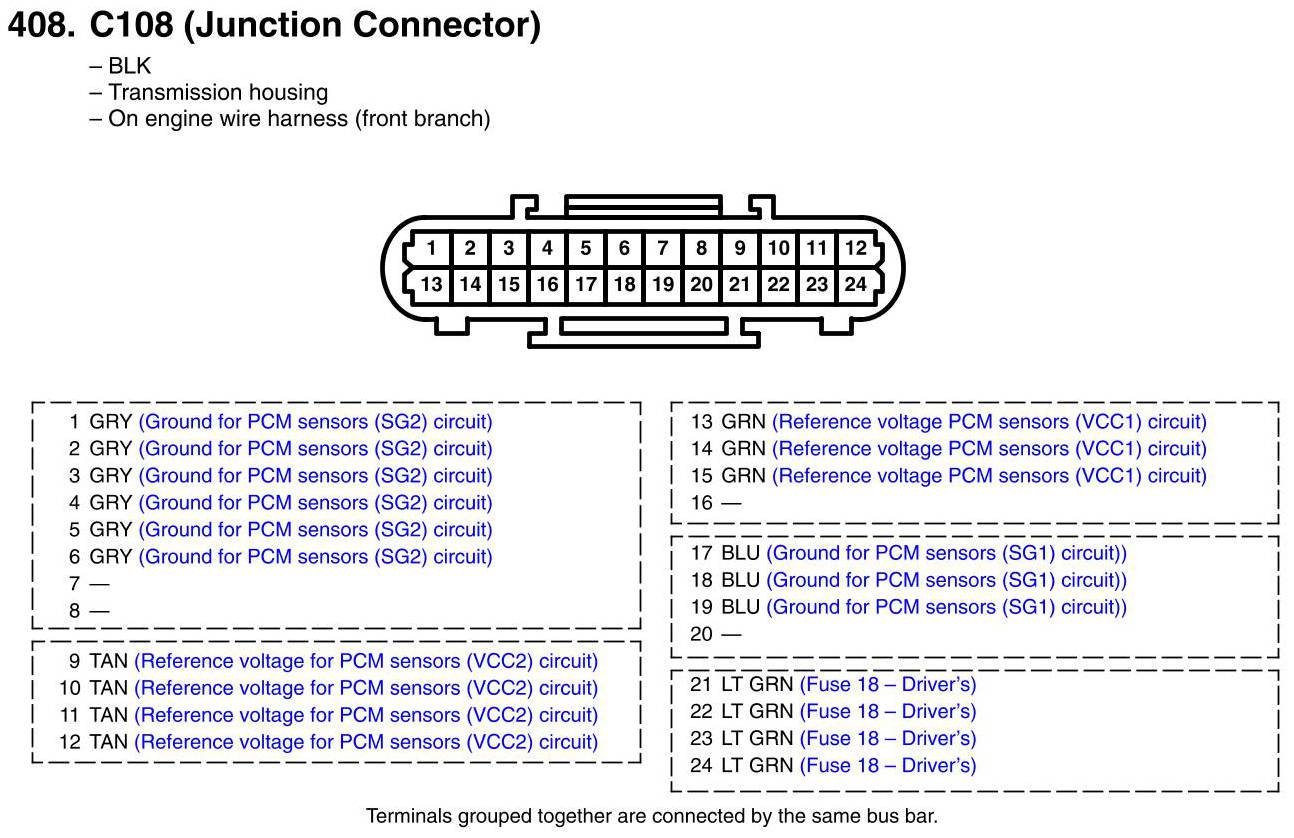

View 408 - C108 (Junction Connector) Connector View
View 408 - C108 (Junction Connector) Connector View
