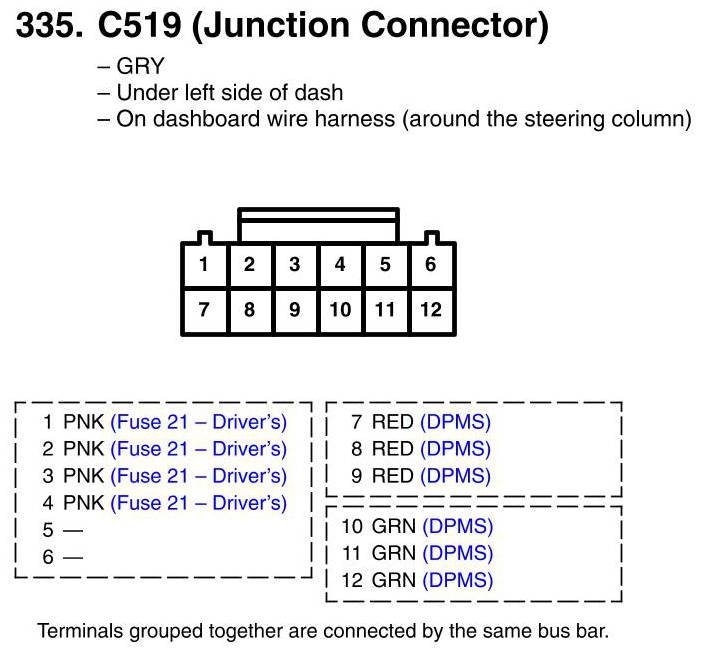

View 335 - C519 (Junction Connector) Connector View
View 335 - C519 (Junction Connector) Connector View
