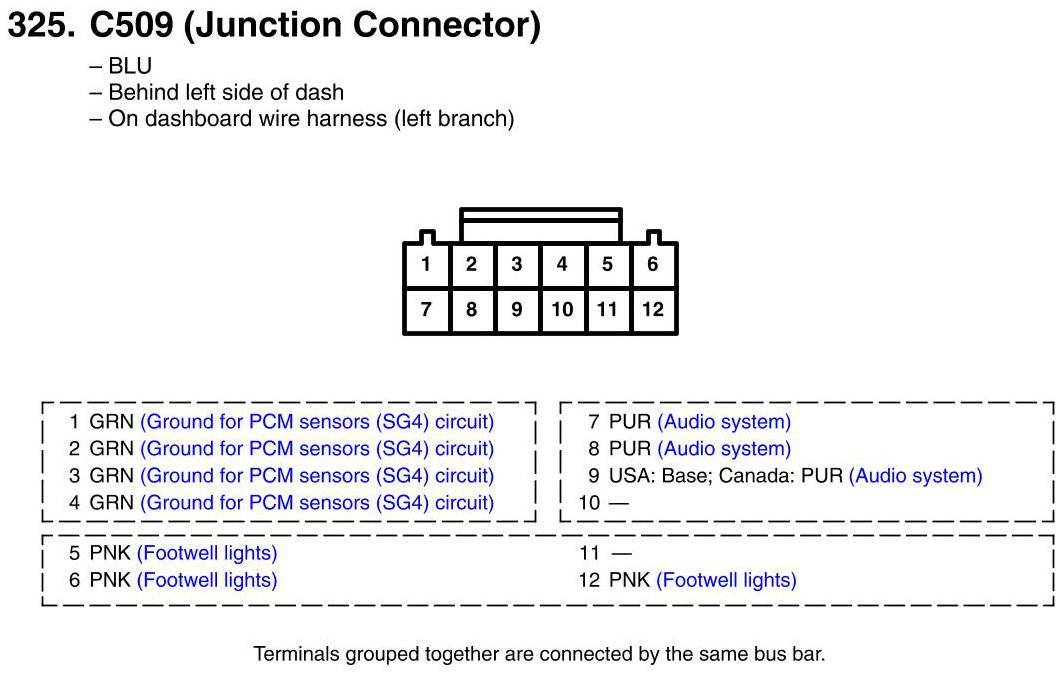

View 325 - C509 (Junction Connector) Connector View
View 325 - C509 (Junction Connector) Connector View
