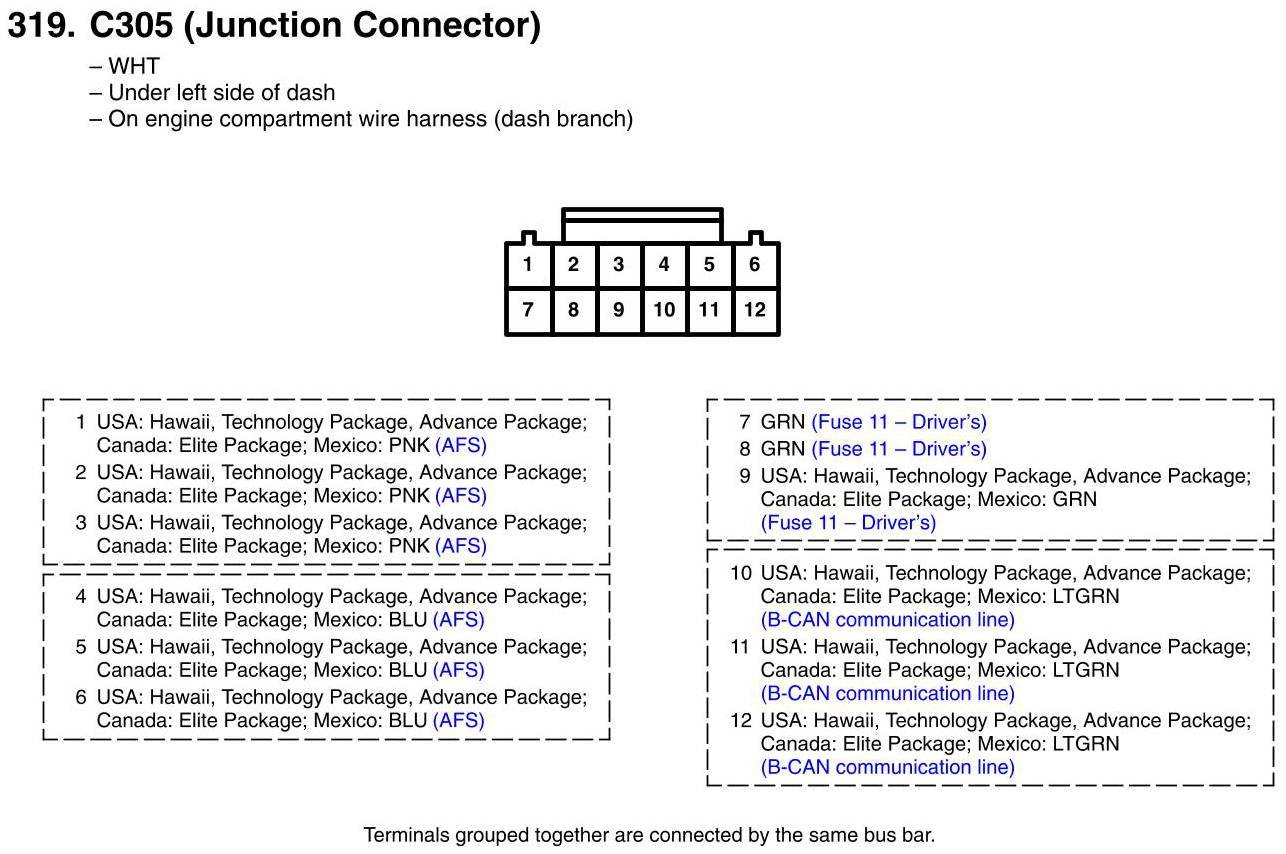

View 319 - C305 (Junction Connector) Connector View
View 319 - C305 (Junction Connector) Connector View
