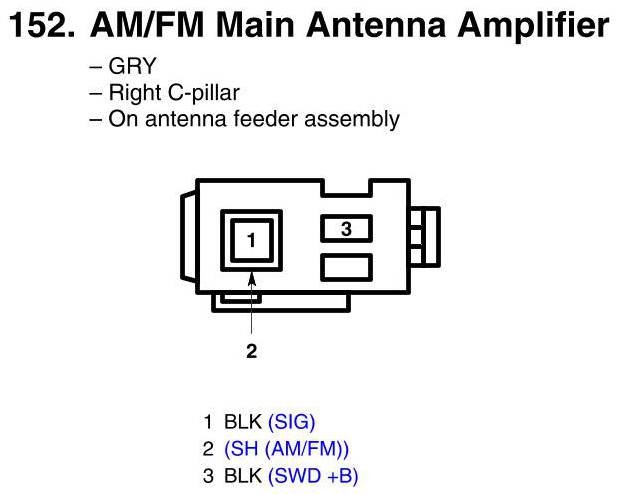

View 152 - AM/FM Main Antenna Amplifier Connector View
View 152 - AM/FM Main Antenna Amplifier Connector View
