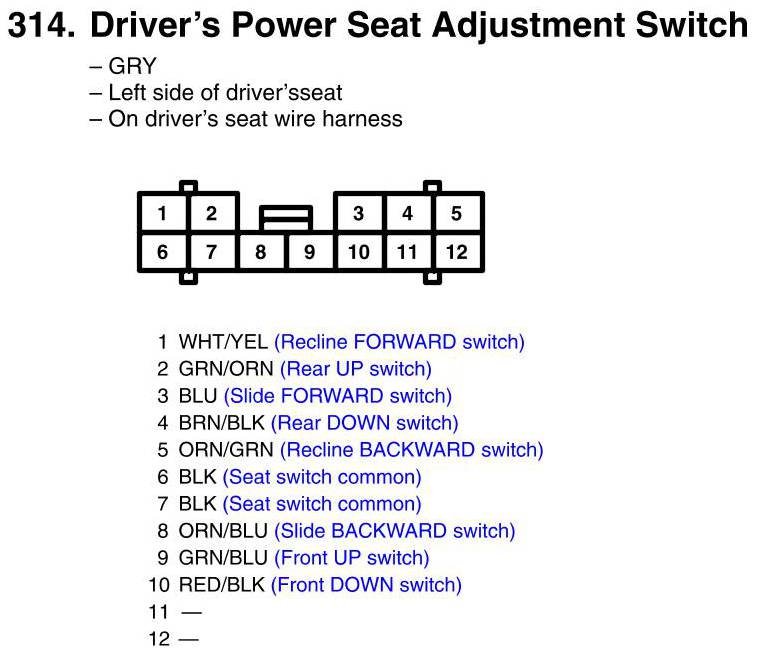

View 314 - Driver's Power Seat Adjustment Switch Connector View
View 314 - Driver's Power Seat Adjustment Switch Connector View
