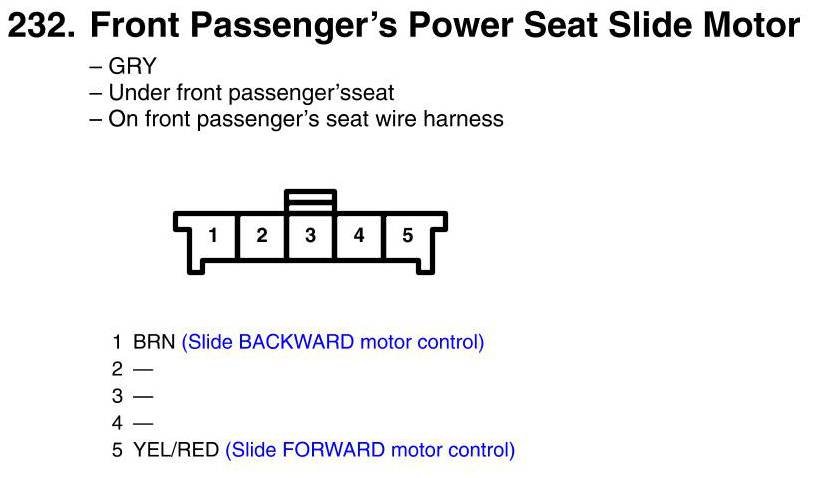

View 232 - Front Passenger's Power Seat Slide Motor Connector View
View 232 - Front Passenger's Power Seat Slide Motor Connector View
