Transmission Range Switch Test

Transmission Range Switch Test

1. Do the battery removal procedure Removal and Replacement.

2. Remove the air cleaner Service and Repair.

3. Remove the intake air duct Automatic Transmission Removal.

4. Remove the battery heat shield Automatic Transmission Removal.

5. Remove the auxiliary under-hood fuse/relay box Automatic Transmission Removal.

6. Remove the battery base Automatic Transmission Removal.

7. Disconnect the transmission range switch connector.

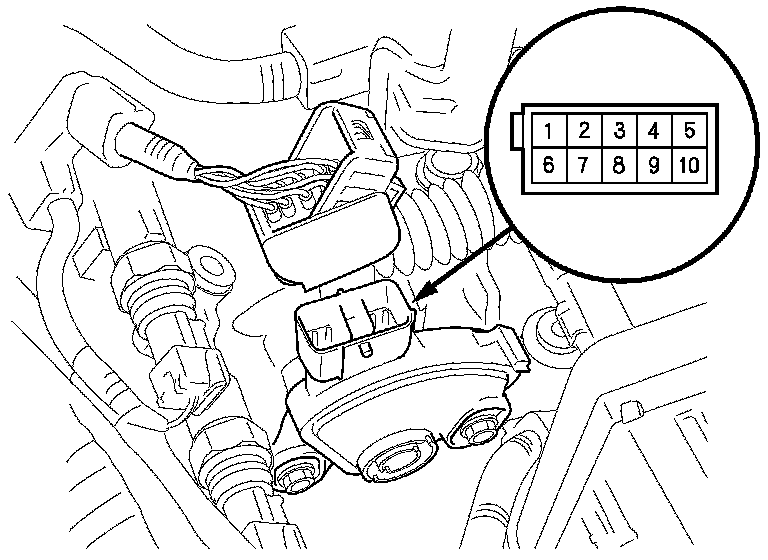

8. Check for continuity between the terminals at the transmission range switch connector. There should be continuity between the terminals in the following table for each transmission range switch position.





9. The transmission range switch test is finished if the test results are OK. Reinstall all removed components. If there is no continuity between any terminals, check the transmission range switch installation. If the switch installation is OK, replace the switch Service and Repair.

10. Install the battery base Automatic Transmission Installation.

11. Install the auxiliary under-hood fuse/relay box Automatic Transmission Installation.

12. Install the battery heat shield Automatic Transmission Installation.

13. Install the intake air duct Automatic Transmission Installation.

14. Install the air cleaner Service and Repair.

15. Do the battery installation procedure Removal and Replacement.
