Removal and Replacement

ATF Cooler Replacement

1. Remove the front bumper Front Bumper.

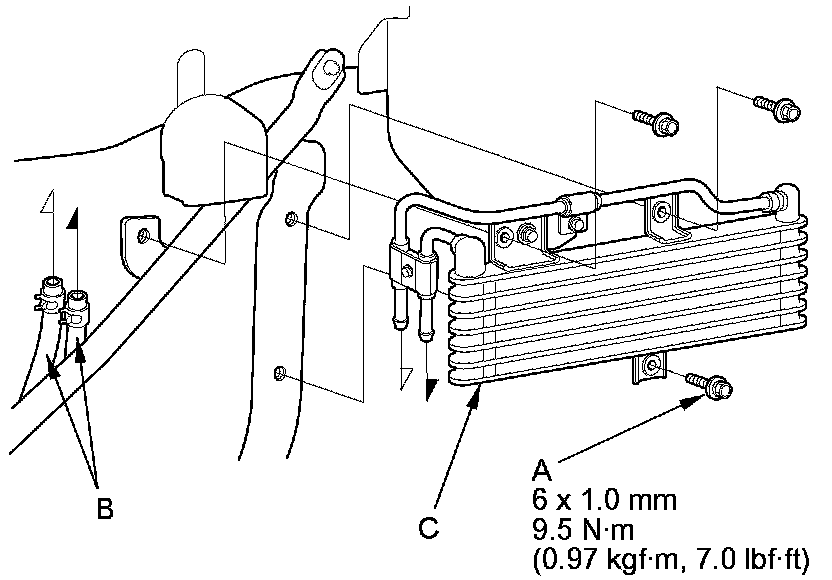

2. Remove the ATF cooler mounting bolts (A), and disconnect the ATF cooler hoses (B), then replace the ATF cooler (C).





3. Connect the ATF cooler hoses Service and Repair.

4. Install the ATF cooler.

5. Install the front bumper Front Bumper.

6. Check the ATF level ATF Level Check.
