Line Pressure Switch Replacement

Line Pressure Switch Replacement

1. Do the battery removal procedure Removal and Replacement.

2. Remove the air cleaner Service and Repair.

3. Remove the intake air duct Automatic Transmission Removal.

4. Remove the battery heat shield Automatic Transmission Removal.

5. Remove the auxiliary under-hood fuse/relay box Automatic Transmission Removal.

6. Remove the battery base Automatic Transmission Removal.

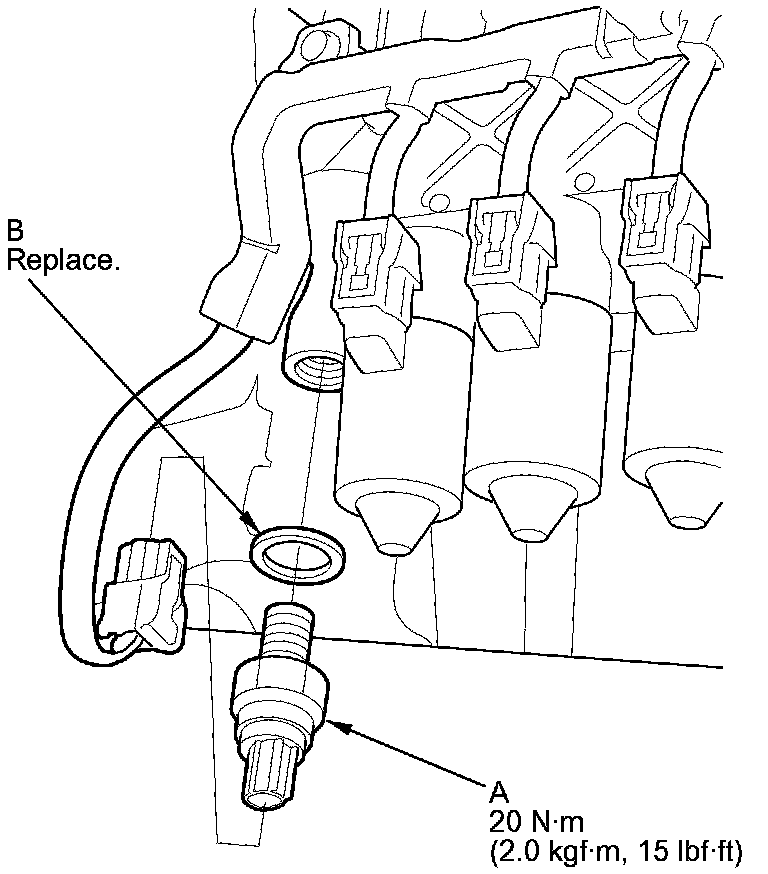

7. Disconnect the line pressure switch connector, and remove the line pressure switch (A) and the sealing washer (B).





8. Install a new line pressure switch and a new sealing washer, and tighten the switch.

9. Check the connector for rust, dirt, or oil, and clean or repair if necessary, then connect the connector securely.

10. Install the battery base Automatic Transmission Installation.

11. Install the auxiliary under-hood fuse/relay box Automatic Transmission Installation.

12. Install the battery heat shield Automatic Transmission Installation.

13. Install the intake air duct Automatic Transmission Installation.

14. Install the air cleaner Service and Repair.

15. Do the battery installation procedure Removal and Replacement.
