Home
>>
Acura
>>
2010
>>
ZDX V6-3.7L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Locations
>>

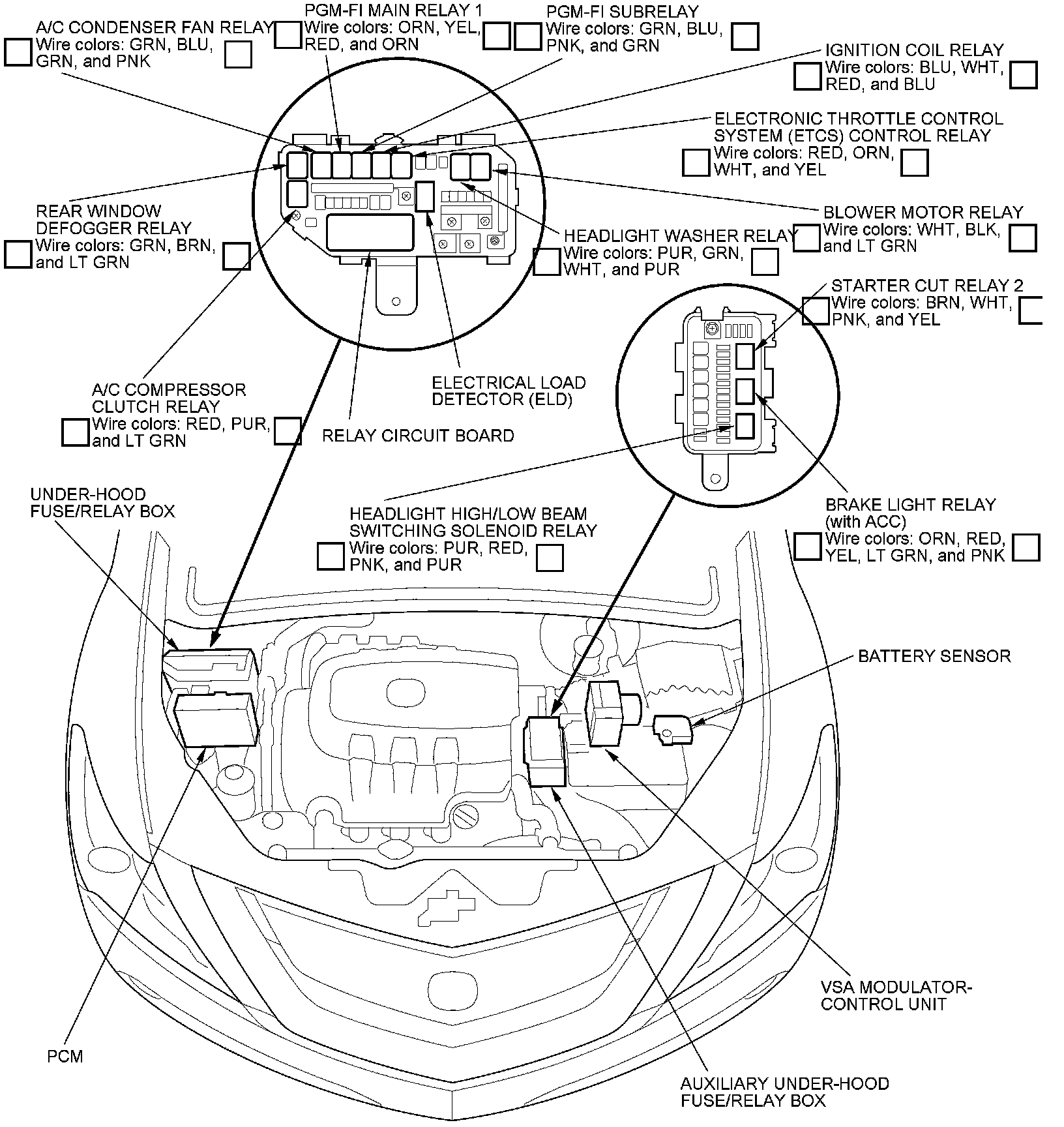

Relay and Control Unit Locations - Engine Compartment
Relay and Control Unit Locations - Engine Compartment
Relay and Control Unit Locations - Engine Compartment
