Variable Induction Control Actuator: Service and Repair

IMT Actuator Replacement

1. Remove the engine cover Intake Manifold Removal/Installation.

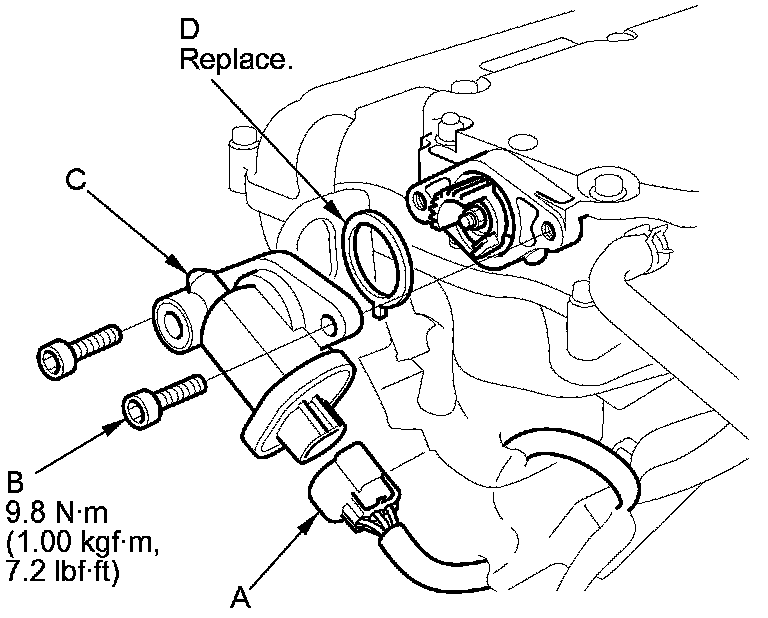

2. Disconnect the IMT actuator connector (A).





3. Remove the bolts (B) and the IMT actuator (C).

4. Install the parts in the reverse order of removal with a new O-ring (D).
