Manifold Pressure/Vacuum Sensor: Service and Repair

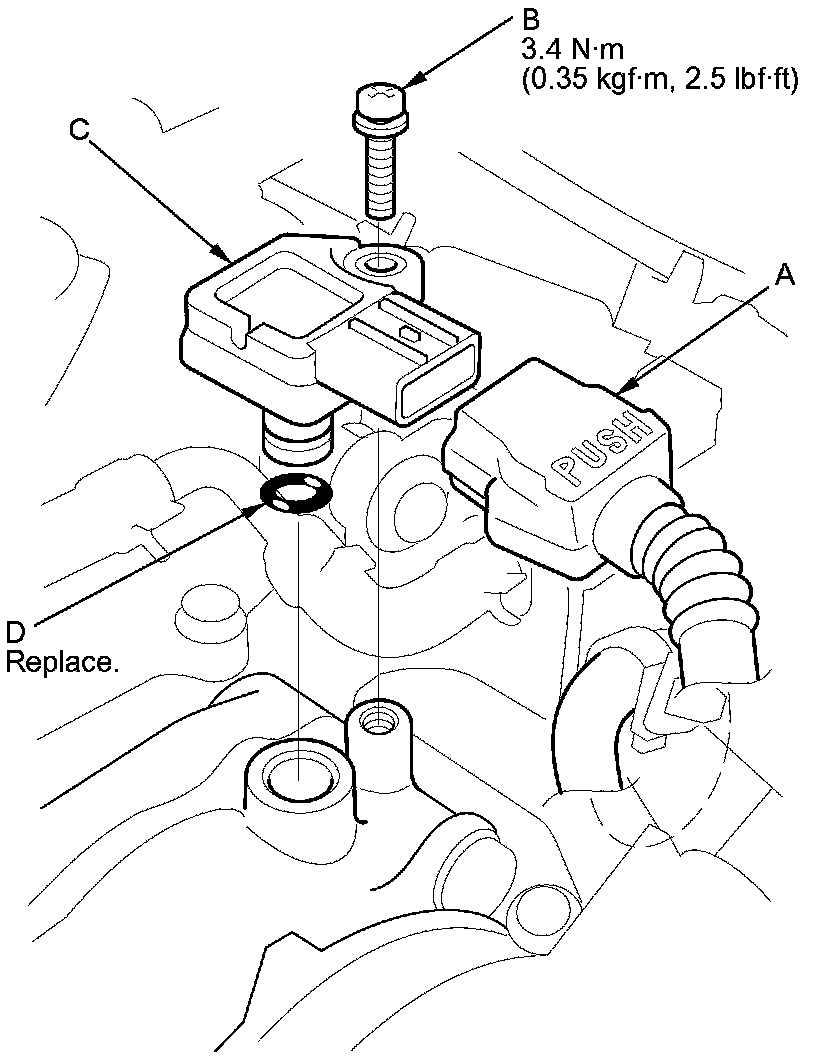

MAP Sensor Replacement

1. Remove the engine cover Intake Manifold Removal/Installation.

2. Disconnect the MAP sensor connector (A).





3. Remove the screw (B).

4. Remove the MAP sensor (C).

5. Install the parts in the reverse order of removal with a new O-ring (D).
