Home
>>
Acura
>>
2010
>>
ZDX V6-3.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>

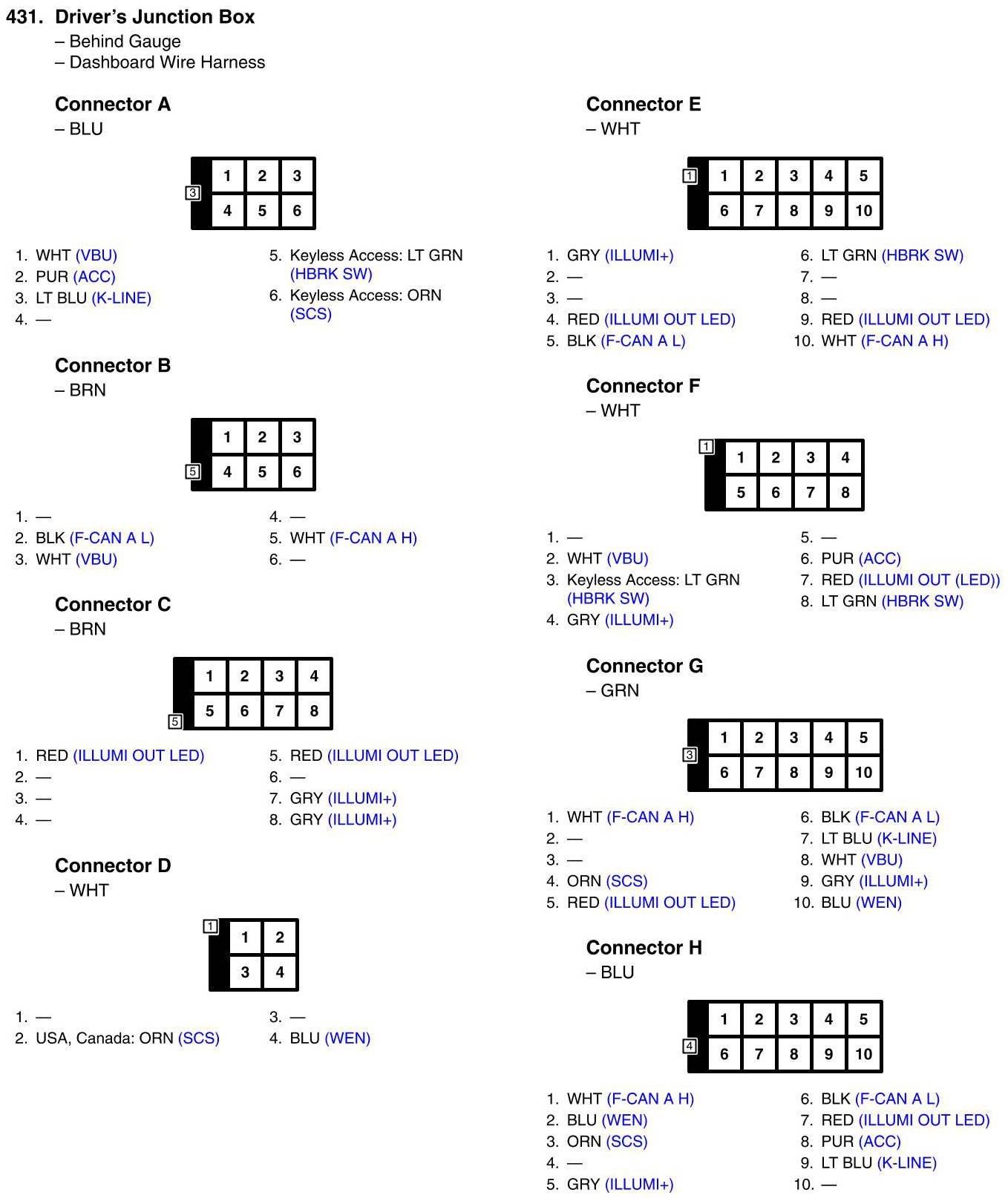

Driver's Junction Box Connector View
Driver's Junction Box Connector View
