Rear Sub-Frame Wire Harness
>>

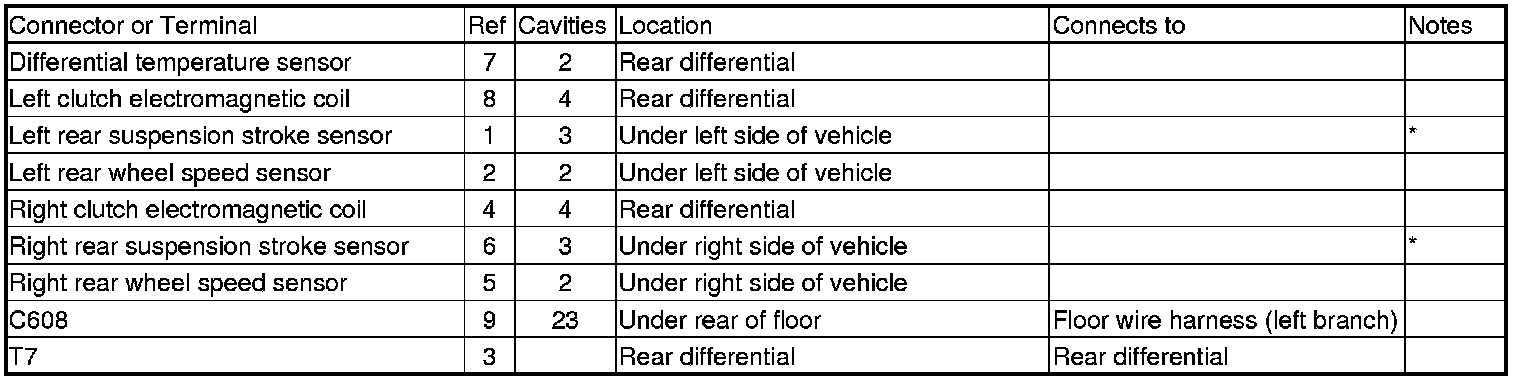

Connector and Harness Locations
Connector and Harness Locations
Connector and Harness Locations

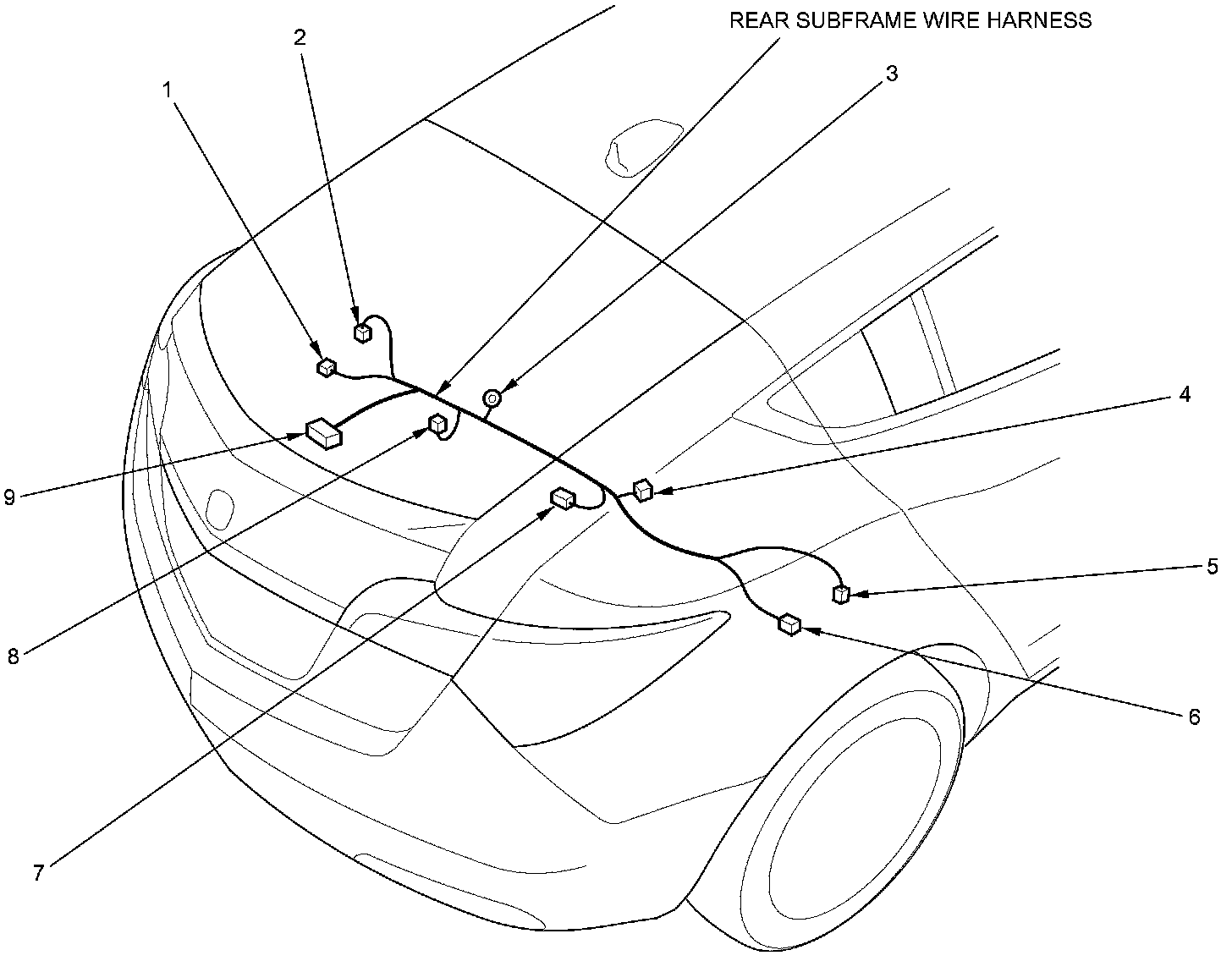

Rear Subframe Wire Harness
Harness View
