Floor Wire Harness




Connector and Harness Locations

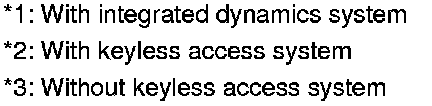

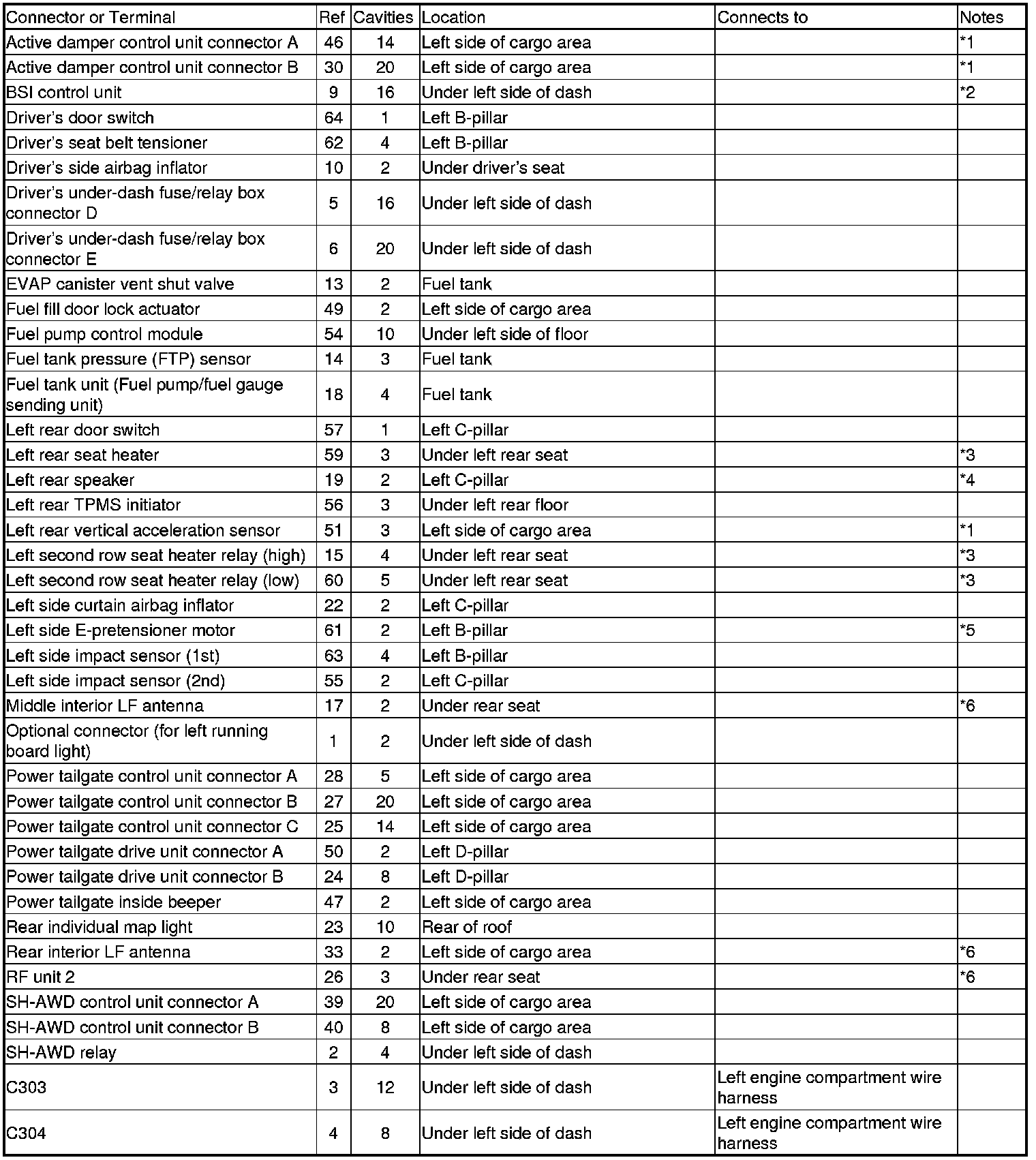

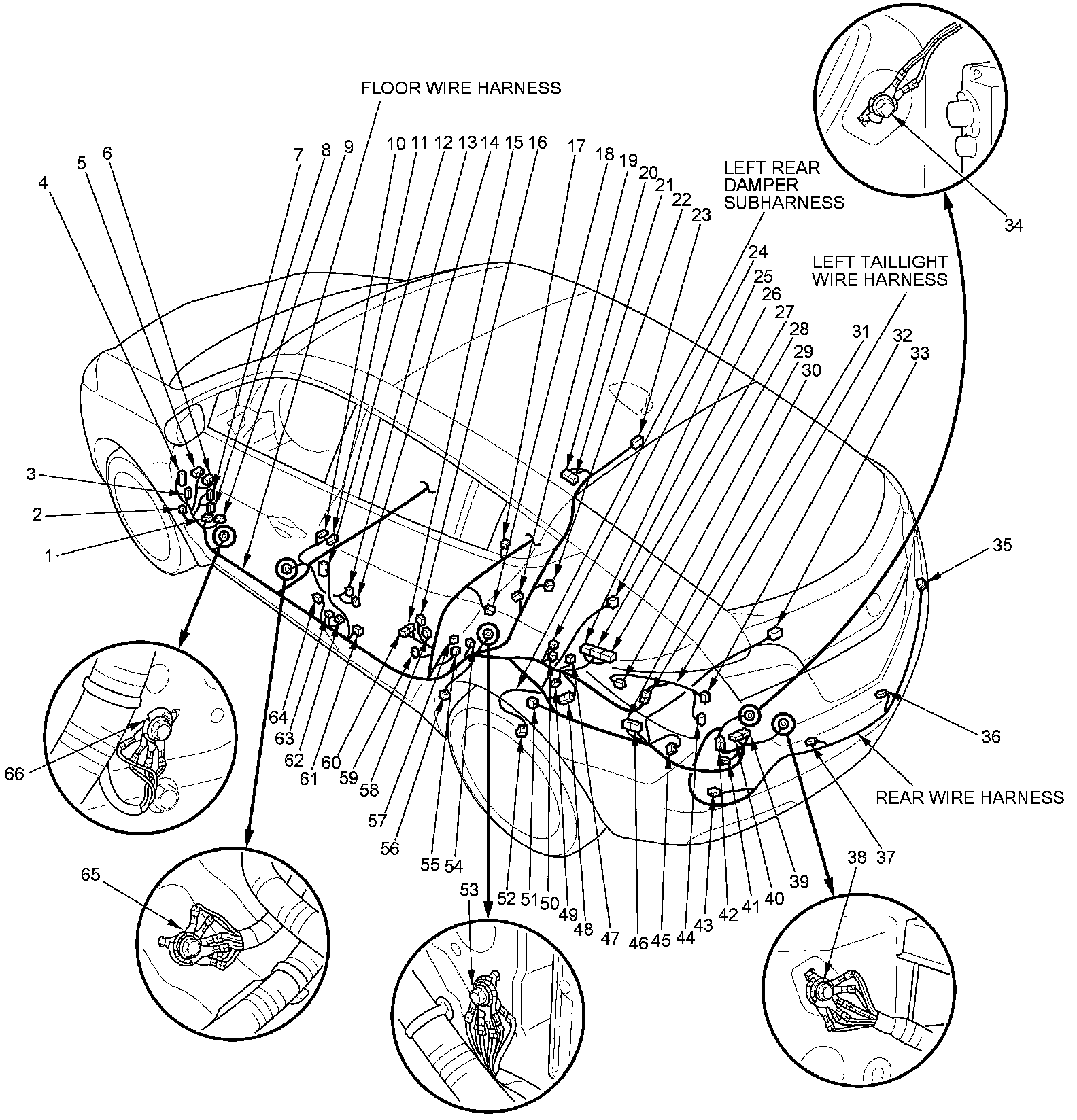

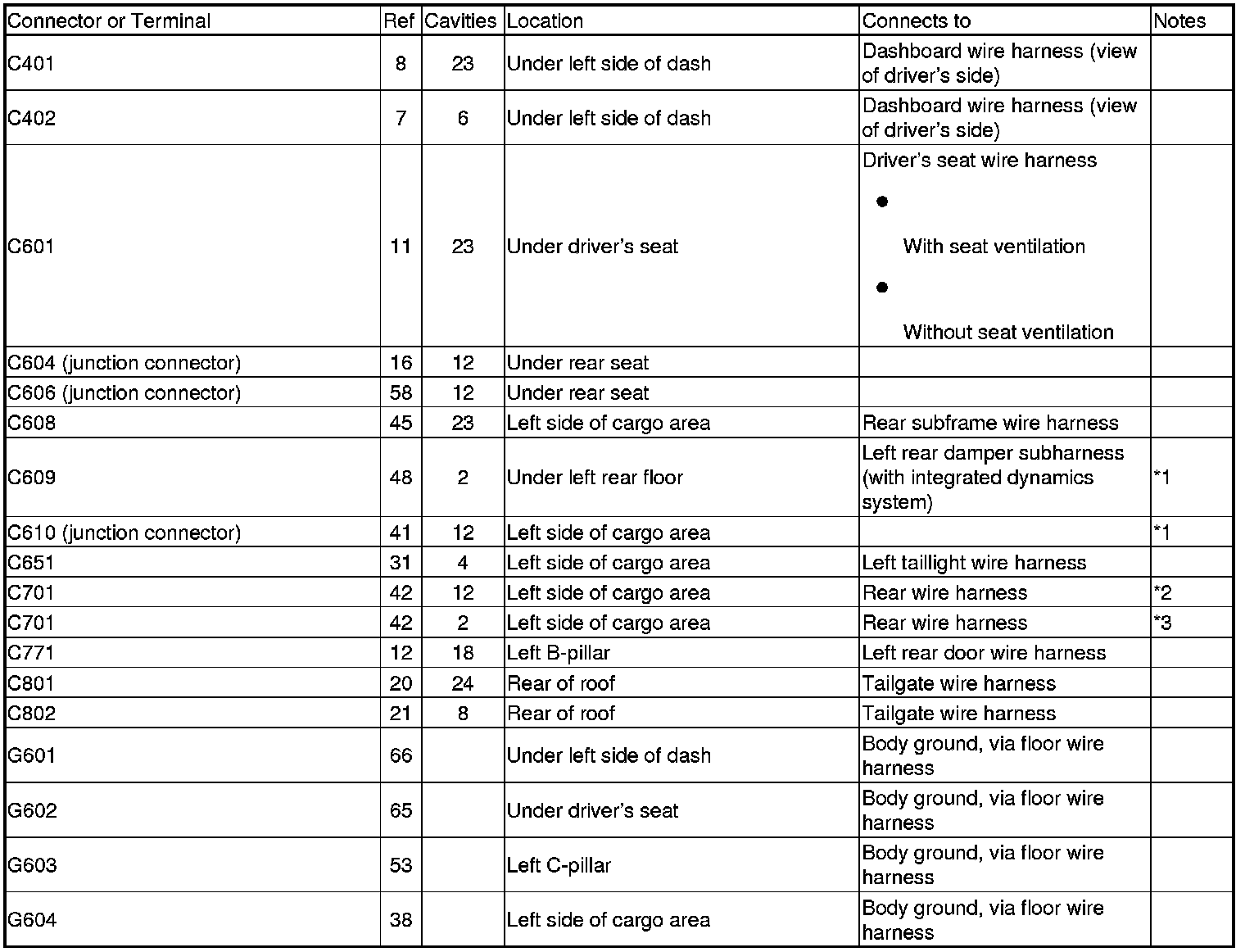

Floor Wire Harness (Left Branch)










Floor Wire Harness (Left Branch) (cont'd)










Harness View

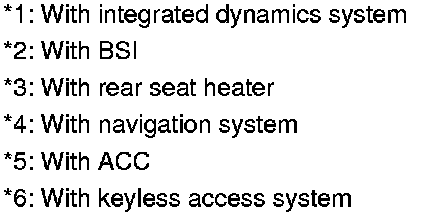

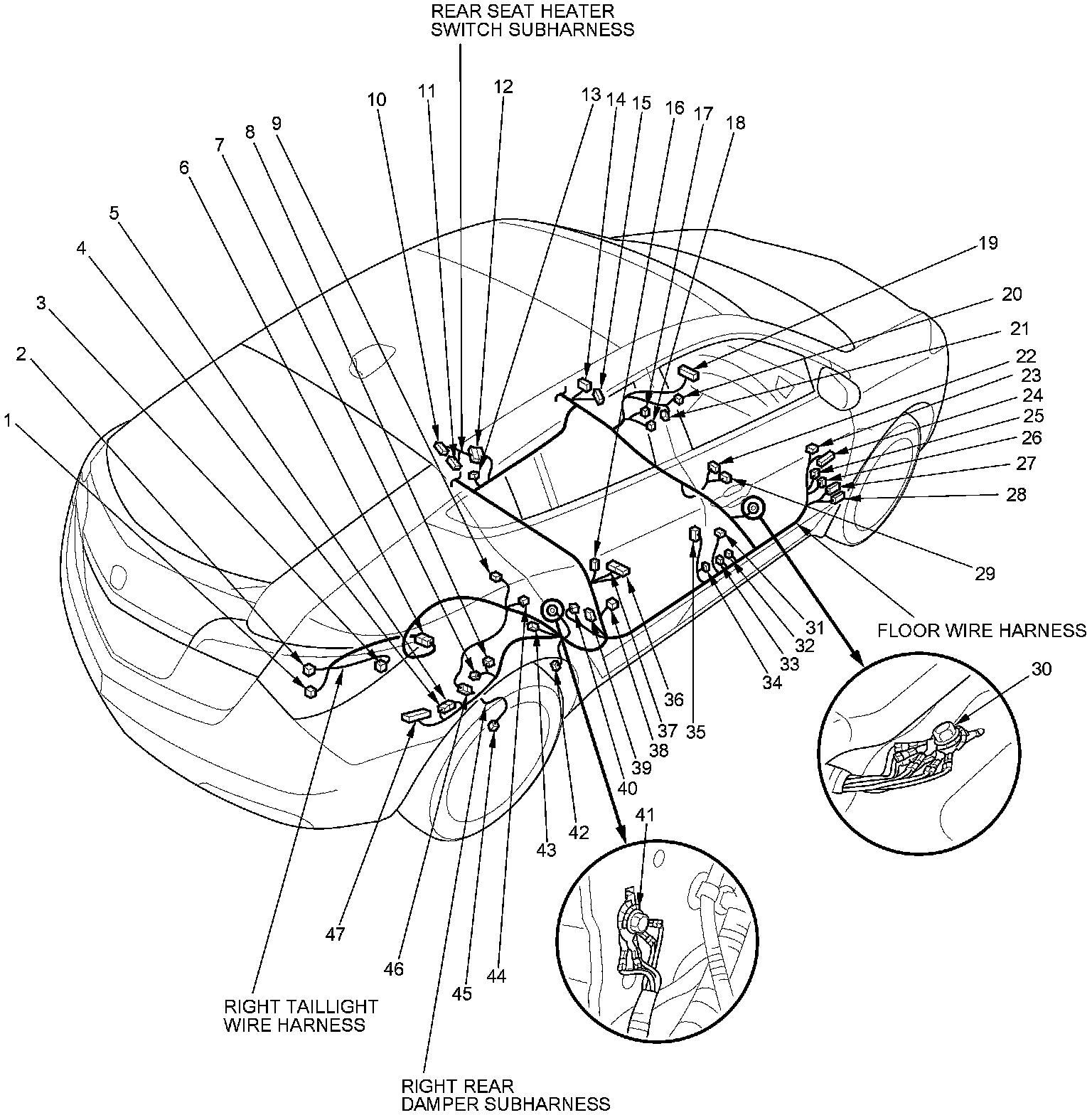

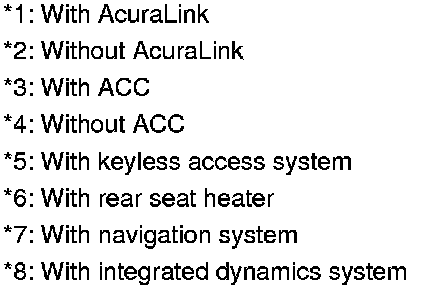

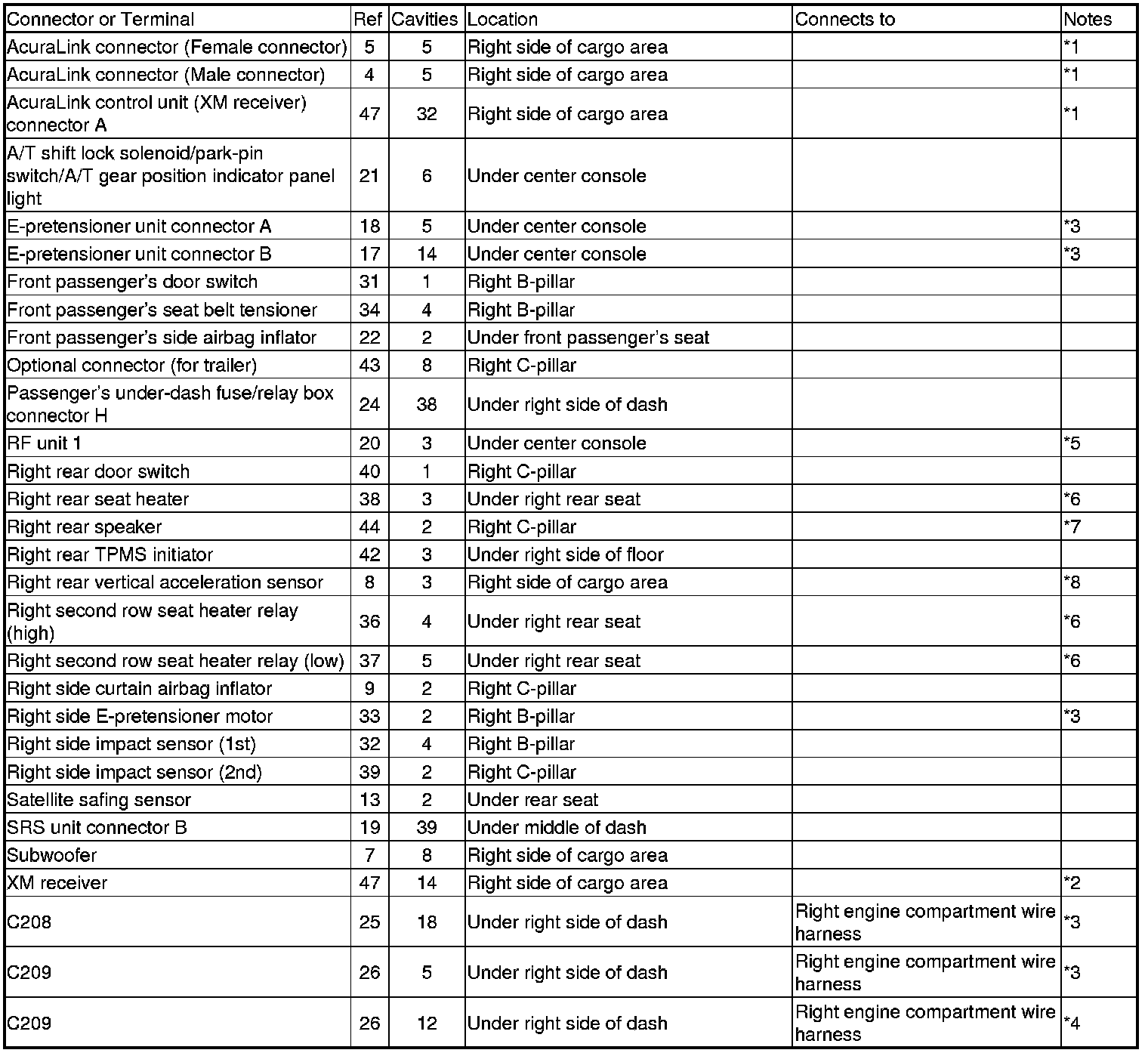

Floor Wire Harness (Right Branch)

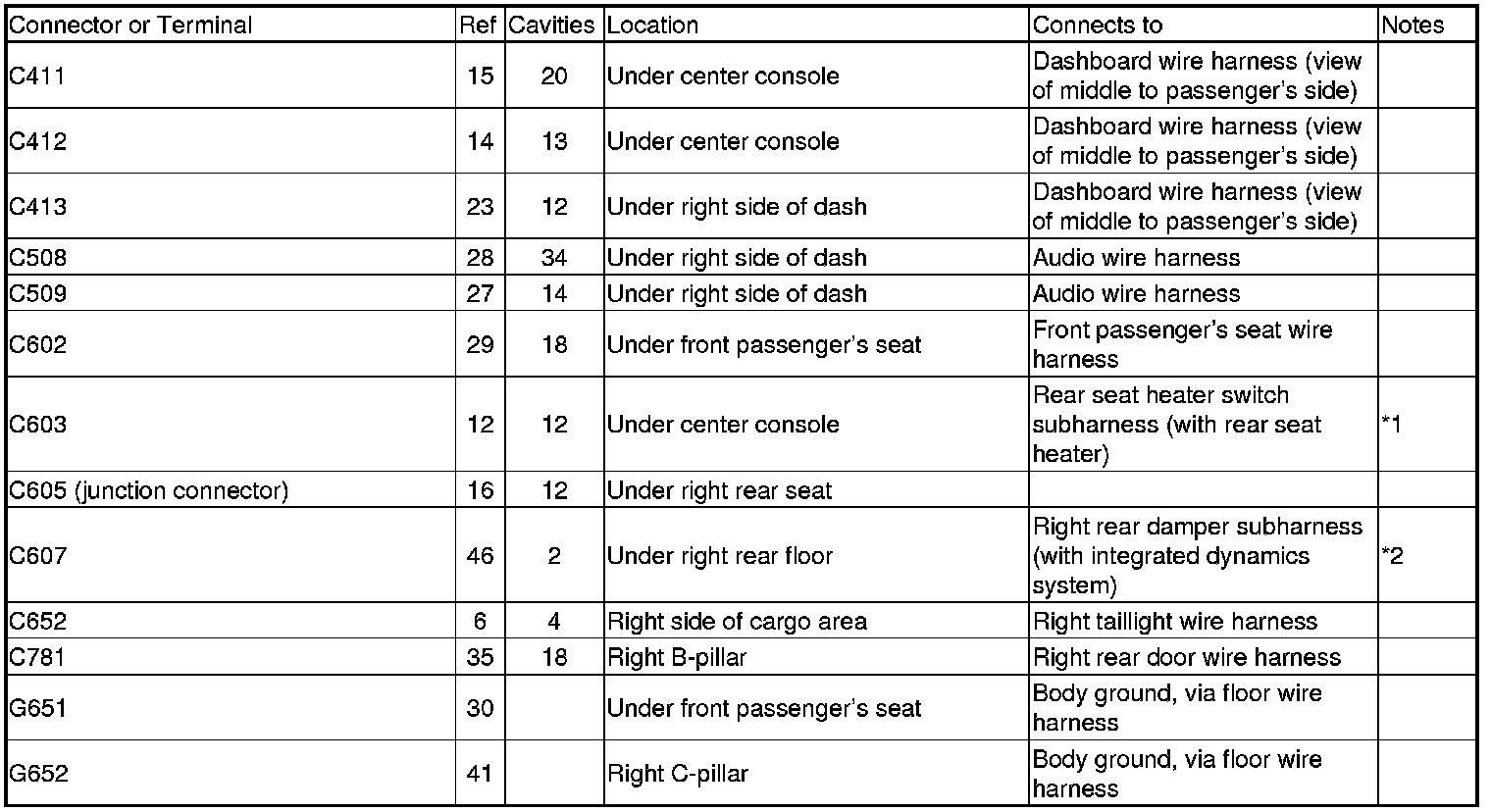

Floor Wire Harness (Right Branch) (cont'd)










Harness View
