Driver's Seat Wire Harness

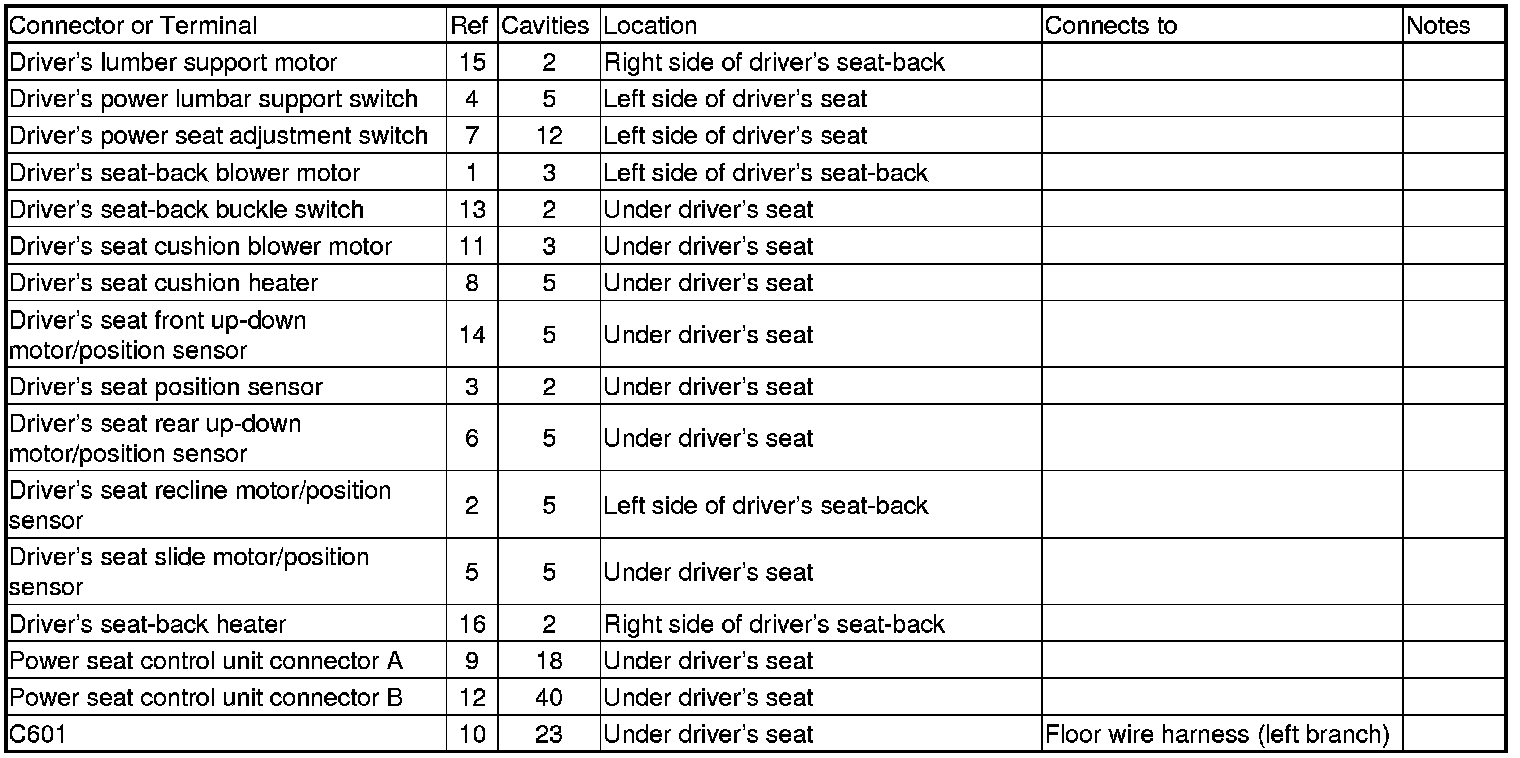

Connector and Harness Locations

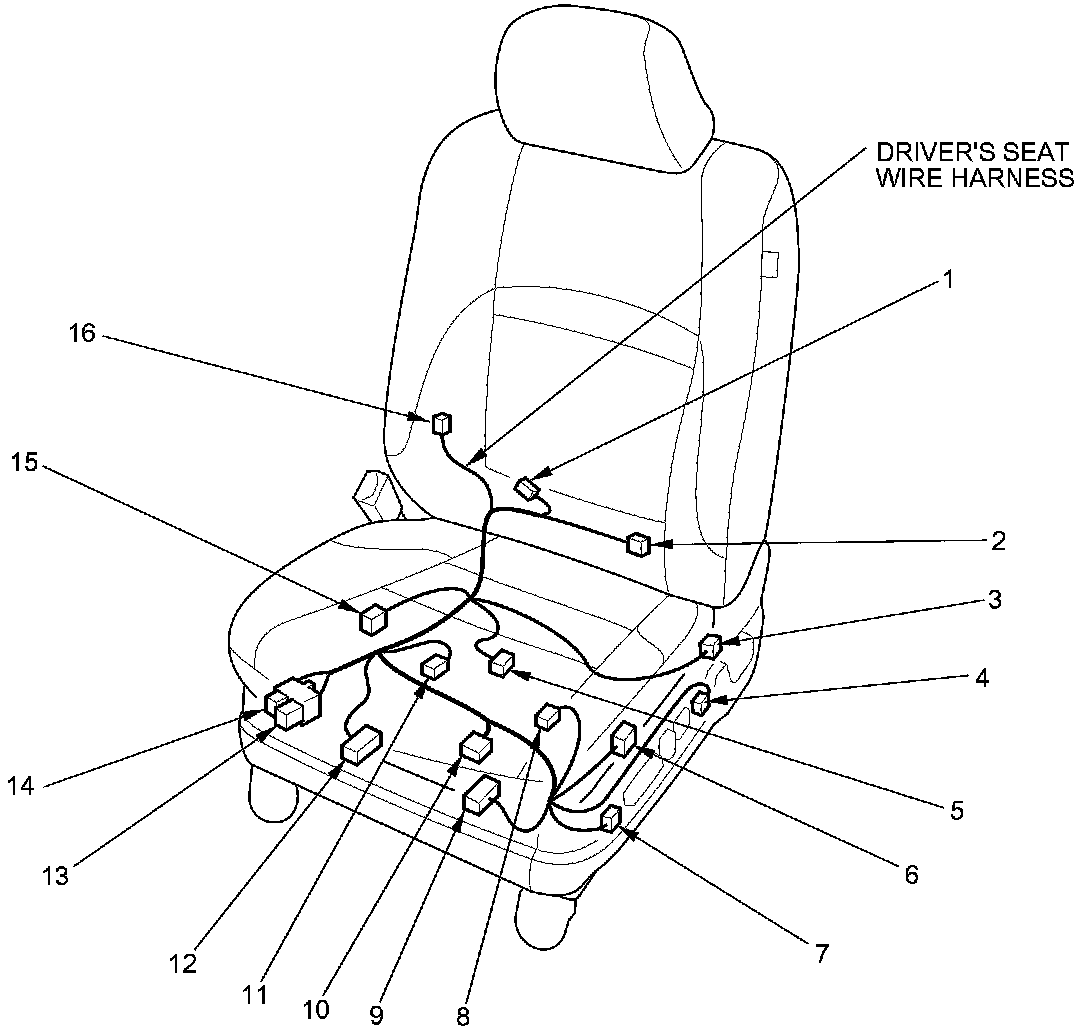

Driver's Seat Wire Harness (With Seat Ventilation)






Harness View

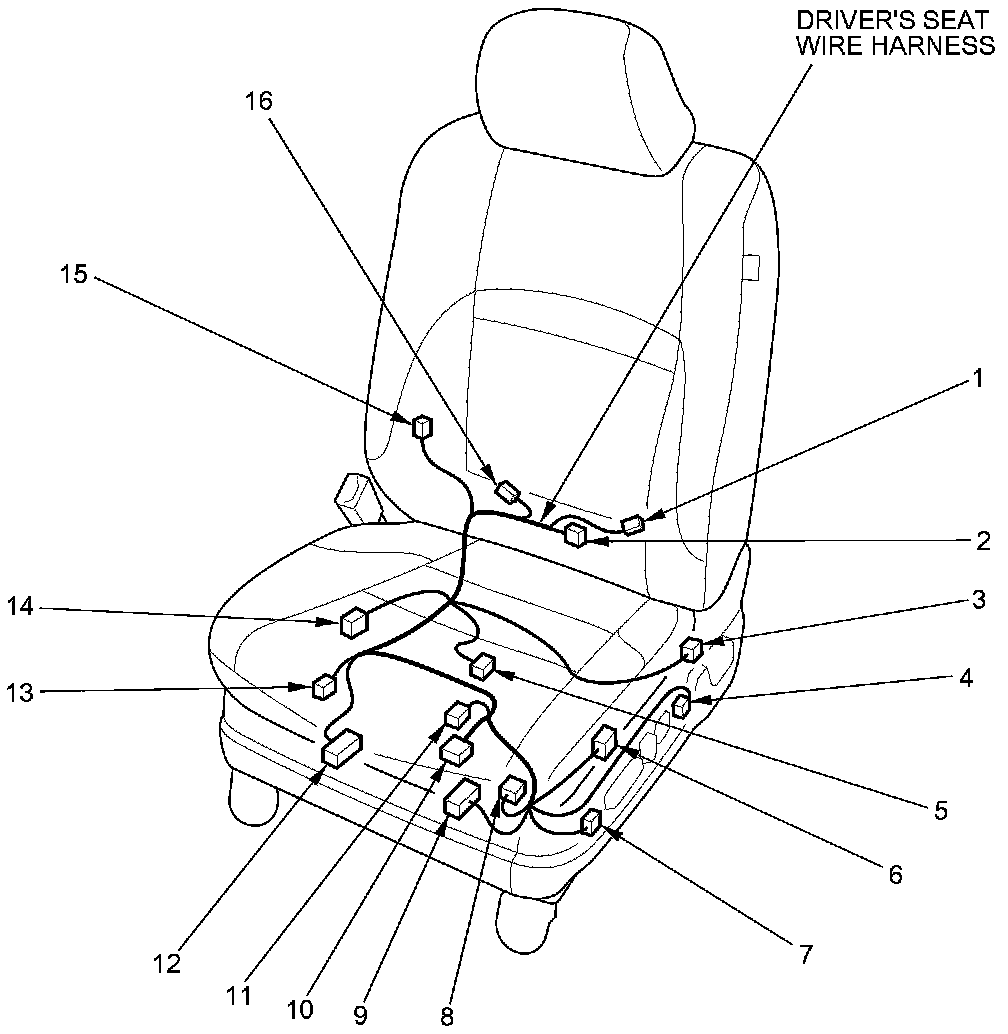

Driver's Seat Wire Harness (Without Seat Ventilation)






Harness View
